Amana ARG7600WW Timer Repair

What is the timer/clock part number for the Amana ARG7600WW Electronic Range/Oven?

Timer part number 315569, 31944801, 793360, 31-315569-07-0 for Amana ARG7600WW Stove

The ARG7600WW Electronic Range/Oven uses electronic clock control part number 315569, 31944801, 793360 or 31-315569-07-0. This part has been permanently discontinued by the manufacturer.

Do you have a failed Amana ARG7600WW Electronic Range/Oven control panel?
Click Here:

Request Appliance Timer Service

We can repair or replace your faulty Amana ARG7600WW Electronic Range/Oven timer

ARG7600WW Schematic and Wiring Diagrams

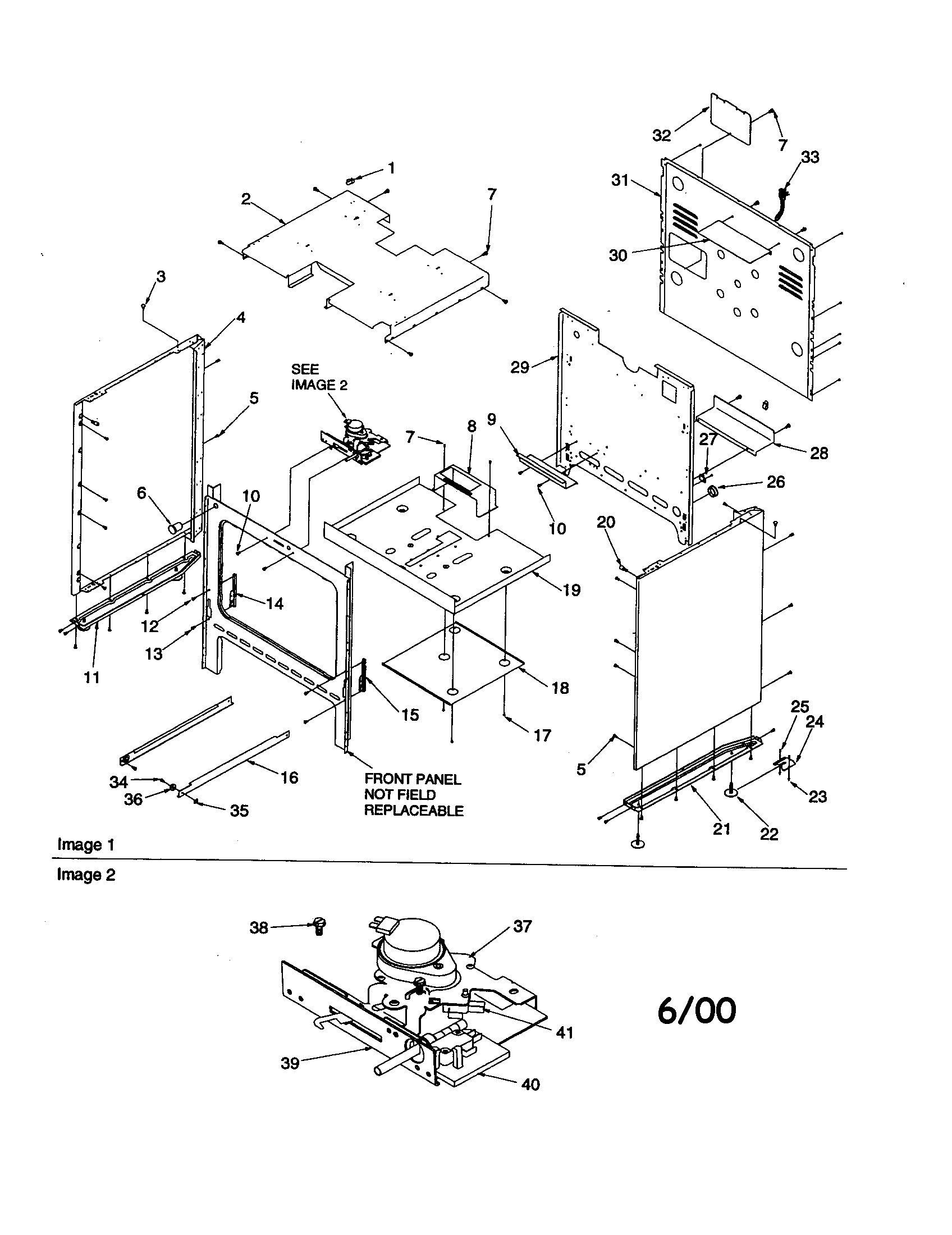

Cabinet Parts diagram
ARG7600WW Amana ARG7600WW Timer/Clock/ERC Cabinet Parts diagram

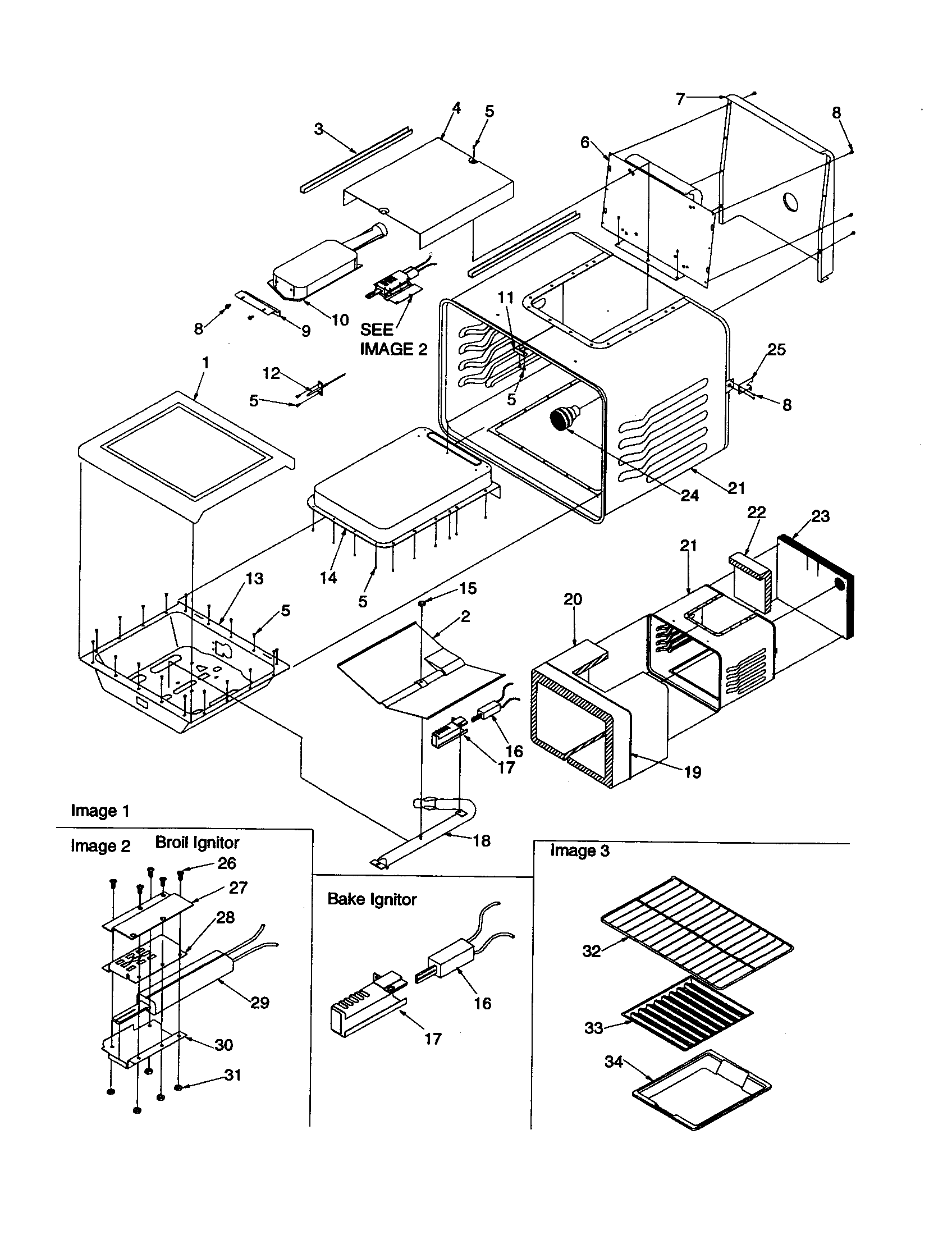

Cavity Parts diagram
ARG7600WW Amana ARG7600WW Timer/Clock/ERC Cavity Parts diagram

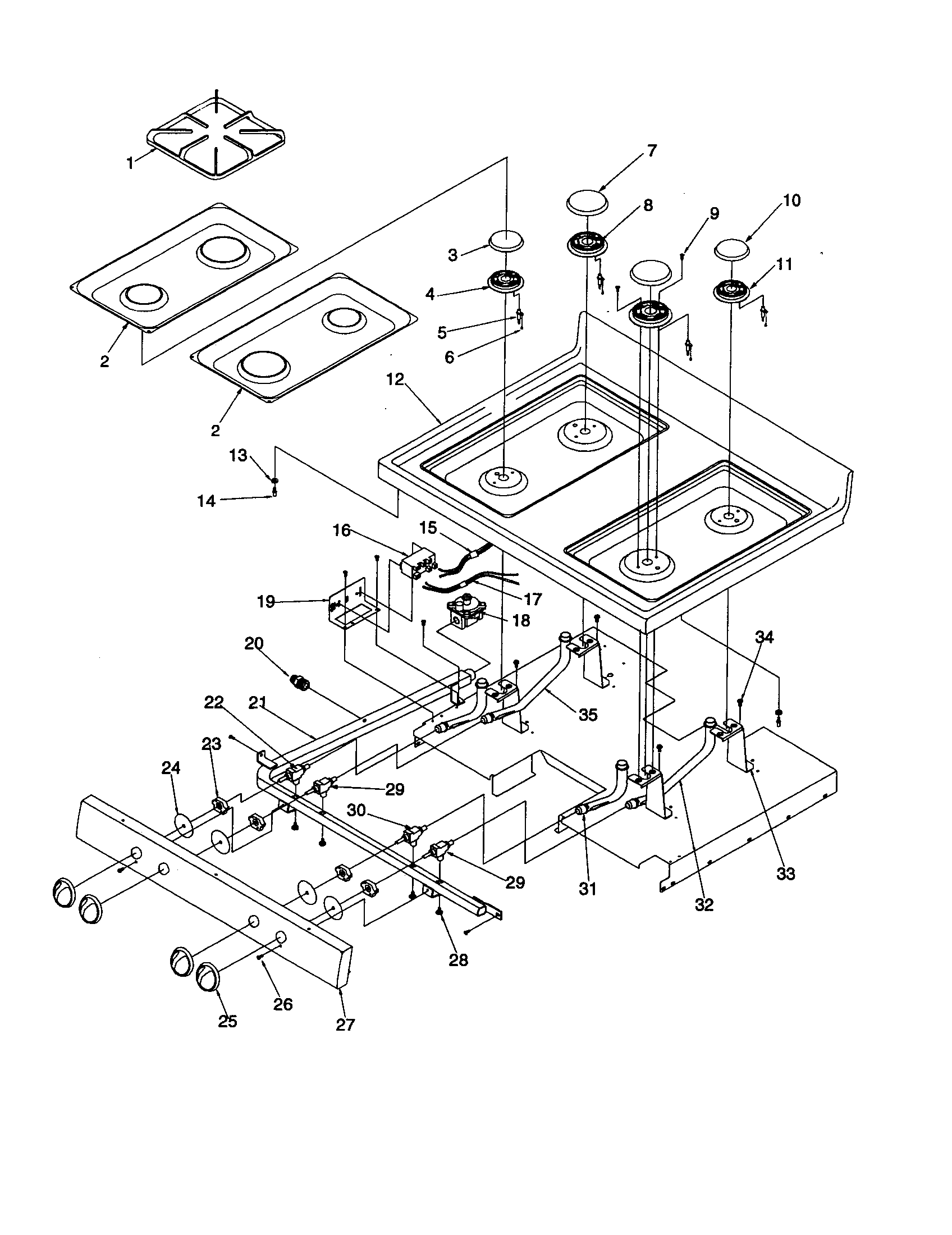

Main top Parts diagram
ARG7600WW Amana ARG7600WW Timer/Clock/ERC Main top Parts diagram

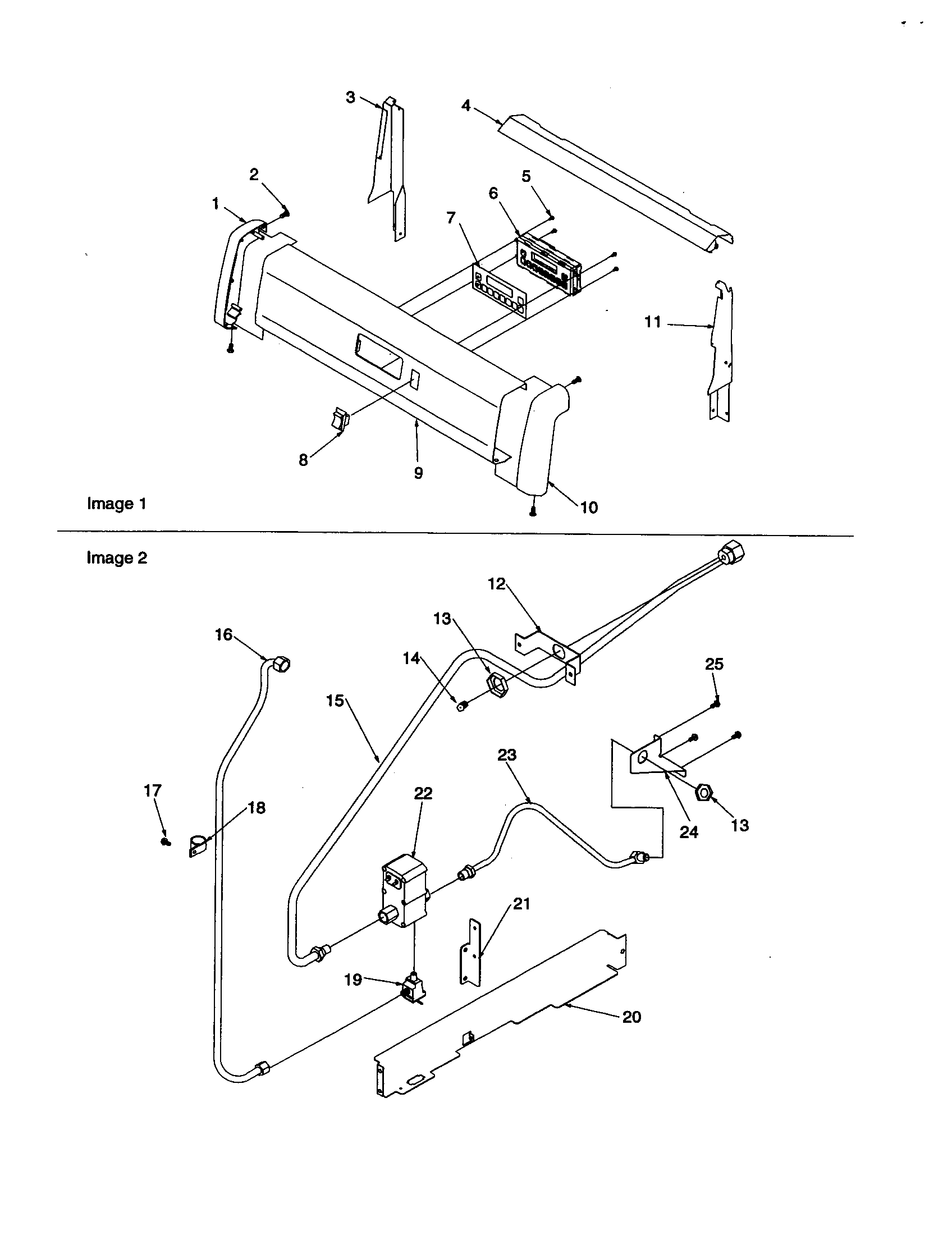

Backguard and gas supply Parts diagram
ARG7600WW Amana ARG7600WW Timer/Clock/ERC Backguard and gas supply Parts diagram

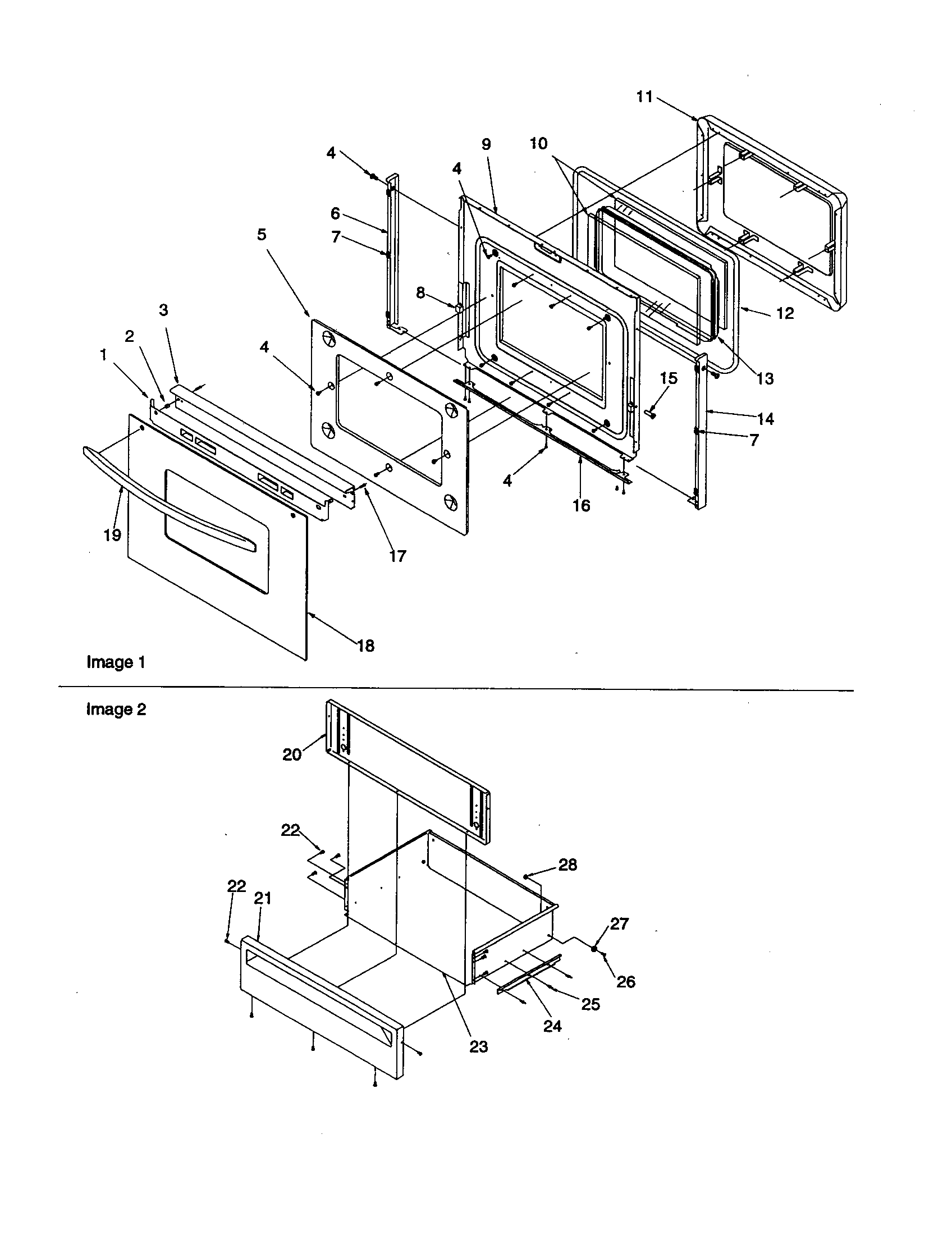

Oven door and storage door Parts diagram
ARG7600WW Amana ARG7600WW Timer/Clock/ERC Oven door and storage door Parts diagram

Appliancetimers.com Service requests for Amana ARG7600WW Electronic Range/Oven Timer

CityProblem DescriptionResolution
Winnipeg, ManitobaOven does not maintain temperature. Sometimes 60F too low, sometimes 60F too high. Replaced temperature sensor and saw no improvement.Repaired
KOMOKA, OntarioUNIT GOES DEAD AFTER POWER GOES OUT AND YOU MUST UPLUG THE UNIT SEVRAL TIMES TO GET IT TO RESTARTAwaiting receipt of timer
Reno, NevadaCan't turn oven on and touch pad doesn't respond. Stove top burners work.Awaiting receipt of timer
Oshkosh, WisconsinNo readout at all, completely black.Awaiting receipt of timer
Jackson, MichiganDOESN'T LIGHT UP AT ALL OR DO ANYTHING ELSERepaired
East Hanover, New JerseyTimer went blank...tried circuit breakers...would not turn back on.Repaired
BAY CITY, MichiganDOES NOT WORKRepaired
Mukwonago, Wisconsinjust stopped workingAwaiting receipt of timer
Hartland, WisconsinTimer is blank. Ordered another off ebay that was supposed to be working, that one doesn't power up either. I'm shipping the second which you can keep for a $20.00 discount off service of the first.Repaired
Grahamsville, New Yorkoven does not work, no lights on timerRepaired
Johns Island, South CarolinaUnit just buzzes. Will not light the oven of broilerRepaired
New Lenox, IllinoisStove won't turn on. I replaced the two ignitors, the stove top burners work fine, but the oven won't start for broil or for bake.Awaiting receipt of timer
Lowell, MassachusettsFirst the broiler stopped working and then three days later everything stopped working.Repaired
Pittsburgh, PennsylvaniaI need to purchase a replacement part. If you have a new part available, then I would like to purchase it. If not, then I would like to purchase a reconditioned part.Awaiting receipt of timer
Blaine, MinnesotaTimer not repairable. Want quote on new and reconditioned replacement.Awaiting receipt of timer
Los Angeles, CaliforniaProblem began as intermittent. Oven/broiler would not heat. Now it doesn't heat at all.Beyond Repair
Studio City, Californiait just stopped working and lighting up, but I have power to stoveAwaiting receipt of timer
Komoka, Ontarioclock/control is dead rest of range worksAwaiting receipt of timer
Shakopee, MinnesotaF-5 error code- motherboard burned out and needs to be replaced for my electronic oven/range timer.Awaiting receipt of timer
Westby, WisconsinF5 on bootAwaiting receipt of timer

Common ARG7600WW timer/clock/ERC problems

Amana Oven ARG7600WW ( 11 ys old). Oven and broiler will not heat. Ignitors will not glow. No gas smell. rangetop burners work fine. Bake Ignitor replaced about 2 ys ago. Could both have failed at same time. Is there a circuit board component that may be linked to both ignitors? Are there test points I can look at?
I have an ARG7600WW (Amana Self-Cleaning gas oven). I am trying to use the self-cleaning feature, however, when I select the self-clean option, the screen reads "door" and beeps, and then it reads "F9", and subsequently will not clean. Any thoughts??? Thank you.
I have an Amana 1999 Model ARG7600WW, When the oven is on and we go to open the door we smell gas (natural gas). Can you tell me if this is a problem that needs too be taken care of and if so what is my problem, part needed to repair it and can I do this.
I have an Amana gas oven model#ARG7600WW. The 4 burners work as does the broiler but it will not bake. The heat element glows up but the gas does not release. The rerason I know that is because after the element got hot I tried lighting the burner with a lighter and i got nothing. Does my model have 2 gas valves?
Tried using my gas range yesterday and it would'nt get hot. Investagated further and found that the glowbar or igniter was working but gas was not being released. What could be causing this problem???
I Replaced the Igniter now have 3.5 amps. The burner comes on then the igniter fades out and the burner flame goes out. With the oven set at 350 the preheat tone goes off with the oven at 225. With the oven set at 400 the preheat tone goes off with the oven at 300. Tried the temperature adjustment in the manual, did not change the oven temp by much. Which to try next Temp sensor or the controller? Before the igniter was replaced some times the oven would work fine other times it could not make or hold temp.
My oven will not come on the broiler at the top of the oven is working fine but the oven part in the bottom will not do anything. No heat or glowing. What do you think could be my problem
Amana ARG7600WW 990S177809 P1143345NWW In the bake mode the oven will not light the igniter glow but burner will not light appears no gas. In the broil mode the upper burnner lights
A few days ago our oven display went black. Not sure the cause. We did have some strong wind that day, but I don't understand how that would do it. Pushing the Start button, I get the beeps - one short, one long, three short. Looking around on the forums I found this thread which appears to be the same issue I'm having: Whirlpool display problems. I even ripped the control panel cover off of the screws like this guy, since I didn't see that thread in time. I did glue all of the contacts back on to the cover though. Anyway, I'm no handy man, but I'd like to fix this myself since I'm guessing it would run $500-600 if I call a repair company. I believe this Electronic Control is what I need to fix the problem: Part Details - WHIRLPOOL Electronic control, part number: AP3873768 My question is do I take a flyer and spend $226 on this part and hope that it works. I see your return policy does not allow returns on plugged in electronics. I guess I'm just looking for a little reassurance that
model # arg7600ww. Display clock keeps flashing, model # arg7600ww. Display clock keeps flashing, and the range wont bake when it is flashing. Once and a while the clock disappears, other times it is fine and the oven works.
