What is the timer/clock part number for the Amana ARG7800E Gas Range?

Timer part number 31944801 for Amana ARG7800E

The ARG7800E Gas Range uses timer part number 31944801.

Do you have a failed Amana ARG7800E control panel? Click here:

We can repair or replace your faulty Amana ARG7800E timer.

ARG7800E are also sometimes referred to using these Alternative Names/Model numbers

Whirlpool ARG7800E Gas Range, ARG7800E-P1143365NE, ARG7800E-P1143340NE, ARG7800E-P1143326NE, ARG7800E-P1143385NE, ARG7800E-P1143388NE, ARG7800E-P1143322NE, ARG7800E-P1141299NE, ARG7800E-P1143346NE, ARG7800E/P1143319NE, ARG7800E-P1143355NE

ARG7800E Schematic and Wiring Diagrams

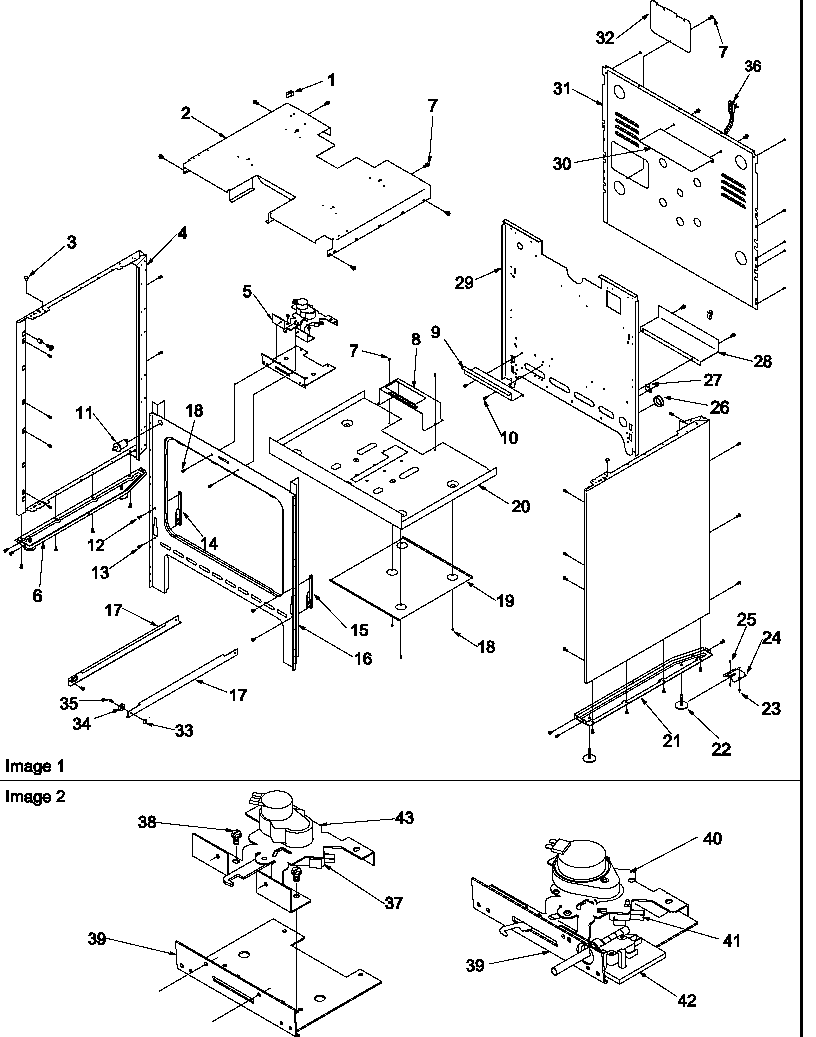

Cabinet Parts diagram

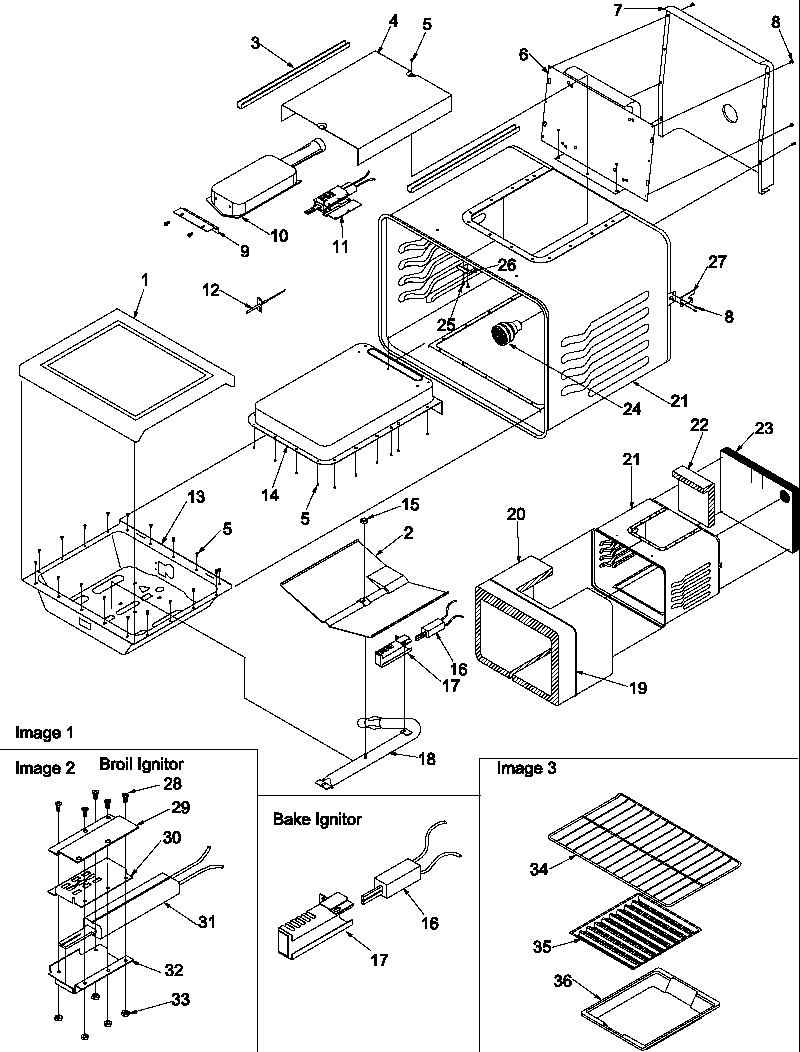

Cavity Parts diagram

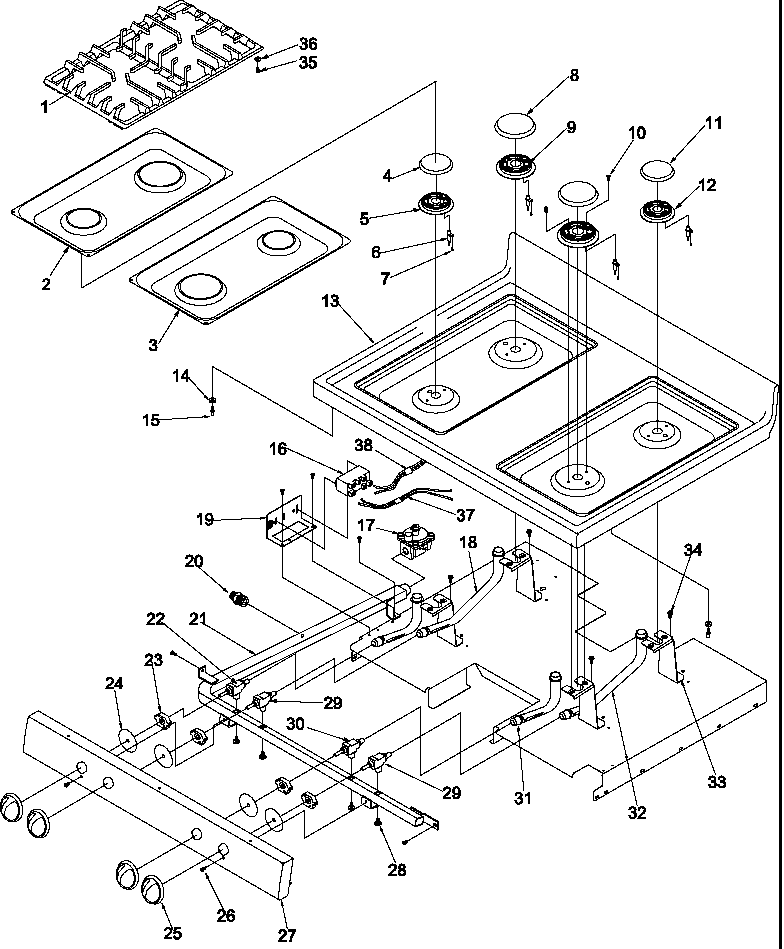

Main top Parts diagram

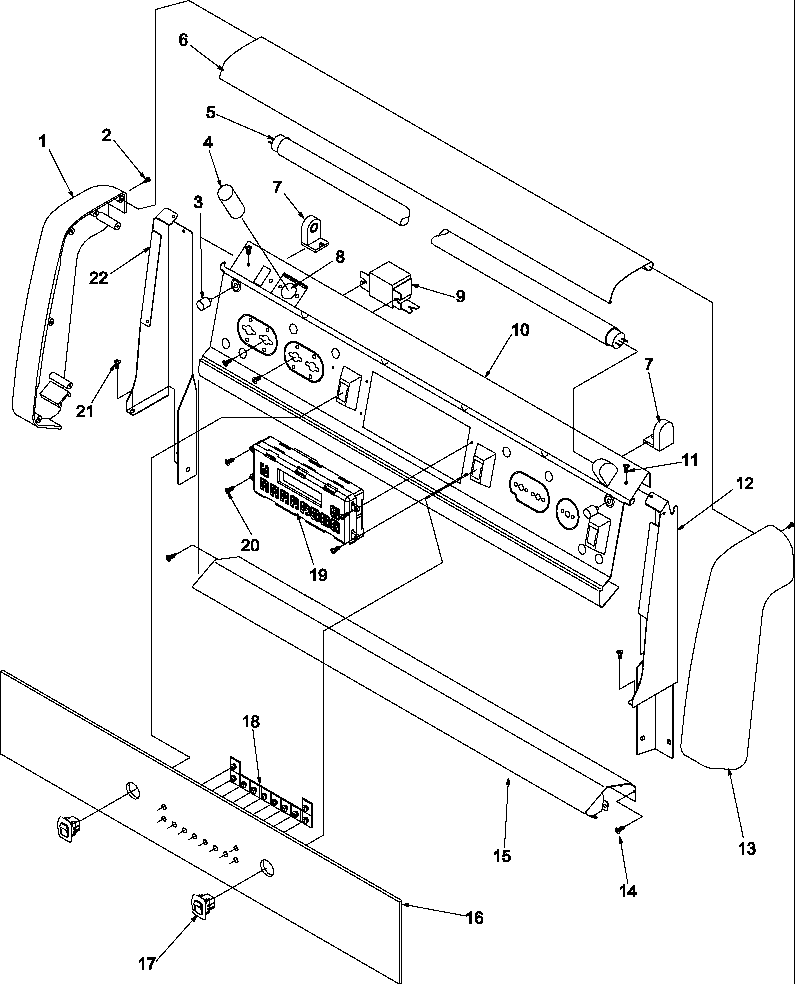

Backguard Parts diagram

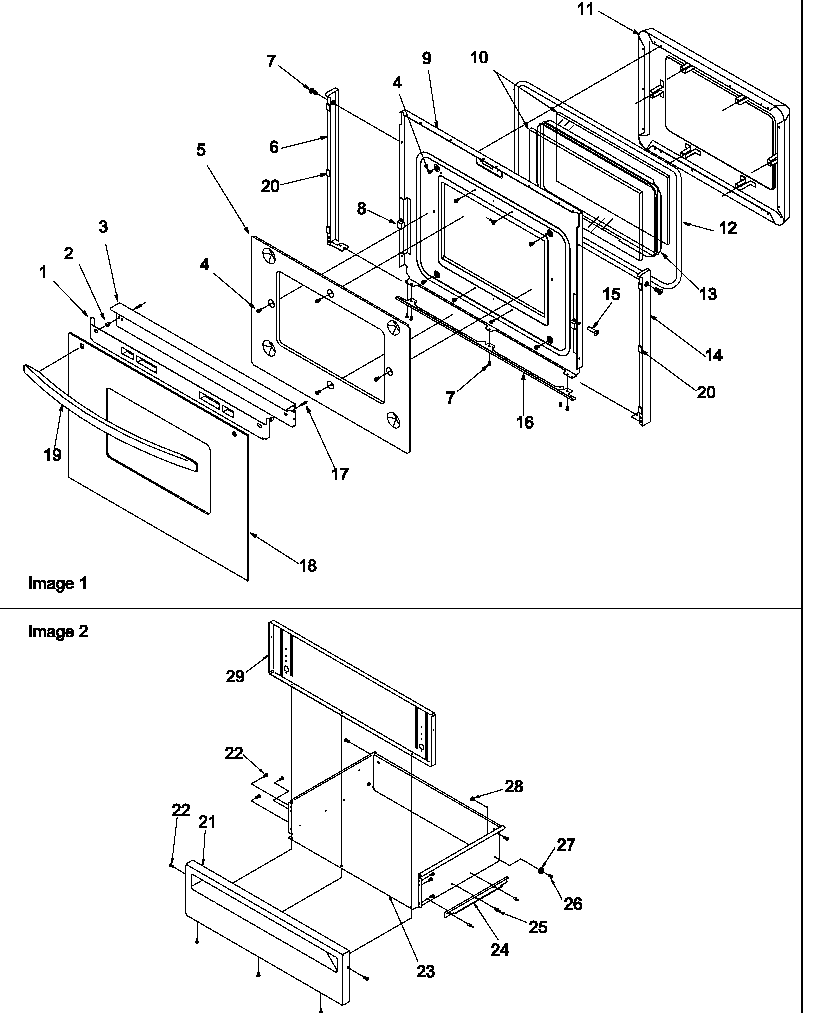

Oven door and storage drawer Parts diagram

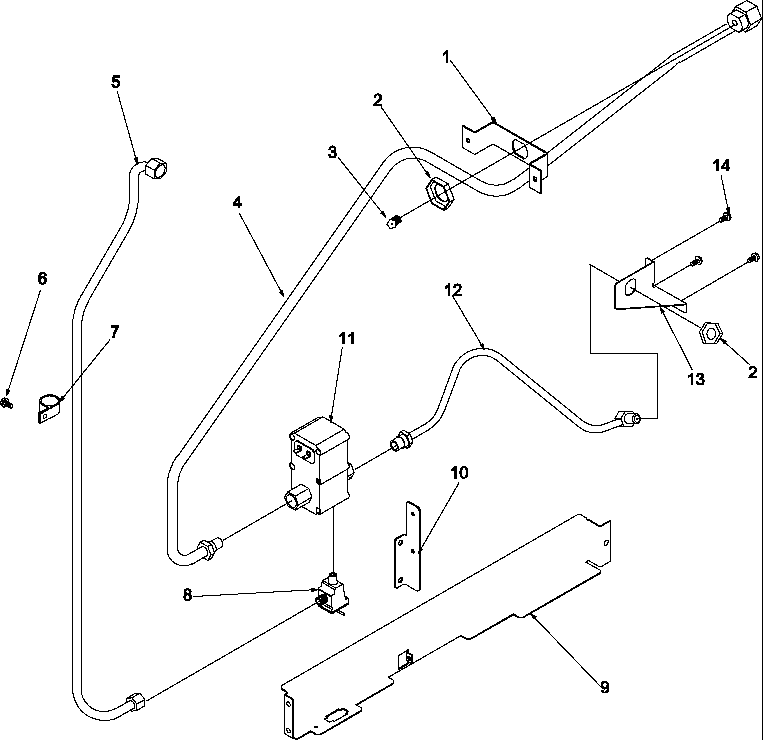

Gas supply Parts diagram

Recent Service Requests

City	Problem Description	Resolution
Ballwin, Missouri	Went completely out. No display	Awaiting receipt of timer
Amana, Iowa	Oven control just went dead (display is dead and none of the oven functions will work nor will the broiler - the rest of the range works i.e. surface burners, panel light & oven light	Repaired
Liverpool, New York	No display - just stopped working. No prior error codes displayed.	Repaired
Lakewood, Colorado	Oven and broiler will not ignite. Stove top burners ignite properly.	Repaired
Boulder, Colorado	Timer not working at all - no display. Can't control oven but range top works. Disassembly of cover shows discoloration (burn?/static discharge?) on one edge of the LED display part. Will purchase timer if it is available in stock. Sending timer for repair since other sources indicate the timer has been discontinued.	Repaired
Mechanicsburg, Pennsylvania	Display will not operate. All other electrical functions (electric start for stove top, Panel Light, Overn Light) work. None of the buttons associated with this part work.	Awaiting receipt of timer
Boulder, Colorado	Timer not working at all - no display. Can't control oven but range top works. Disassembly of cover shows discoloration (burn?/static discharge?) on one edge of the LED display part. Will purchase timer if it is available in stock. Sending timer for repair since other sources indicate the timer has been discontinued.	Repaired
Euclid, Ohio	Oven Timer board appears dead. 120V exists at the middle connector between the black and both of the other wires, so power is not the issue.	Repaired

Common problems for Amana Gas Range ARG7800E Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your ARG7800E timer-related problem.

Hi, I have an Amana oven Model Nbr. ARG7800E. The oven will not ignite, the broiler will not ignite and the self clean system will not ignite. The oven has a seperate ignitor from the broiler. I replaced the oven ignitor Nov. 2008. Thanks for yoyr help. Steve

The oven in my Amana ARG7800E just stopped working (no gas is being emitted so it cannot ignite). The ignition element is glowing and putting out lots of heat.

Recently cleaned my Amana Insta-broil gas range( I believe that range in may 8-10 yrs) and now the oven will not heat up past 100 degree's. Broiler and range top burners are working. I am getting a symbol under the temp.read out, but when we bought our Townehome 3 yrs ago there no manual left with the range so I am not sure what that may mean? HELP! Thank-you for any advise.

Amana ARG7800E oven or broiler won't ignite. Replaced oven ignitor previously in 2/07.

have arg7800E not getting oven temp up properly andtemp fluctuates some times have to light burners to get oven to even start up

How can I get an Owner's Manual for a Model ARG7800E range/oven. Trying to find out nature of problem when activating the self-cleaning feature. Get an F9 on the display and then it starts beeping. Don't know how to turn off the beeping. It starts back up even after pushing the cancel button. Only way to stop it is to unplug the appliance. Help! Pat

Model number ARG7800E Amana oven oven will not heat up. The ooven ignitor light comes on but temp stays at 100

I have a an AMANA gas range burners work but oven doesn't I have a an AMANA gas range and the top burners all work but today when my wife tried to turn on the oven it doesn't work. Is there some sort of pilot light on these ranges? It is only about 5 or 6 years old. Its model number is ARG7800E.

Amana Oven ARG7800E - Oven will only heat up to 150 degrees. The oven will only heat up to 150 degrees. It took about 1/2 hour to do that. It is getting gas & heat. The range top is working fine. Why is my oven only heating up to 150 degrees & taking so long to do that?

Amana oven ARG7800E Oven, Broiler and Self Clean will not ignite The Oven will not ignite, just replaced the oven ignitor Nov.2008. The Broiler will not ignite, The Self clean will not ignite. The door does automatically lock when you start the self clean cycle but no heat. Thanks for your assistance. Regards, Steve
