Amana ARGS7650E Timer Repair

Amana ARGS7650E Electronic Range/Oven Features:

Amana ARGS7650E Electronic Range/Oven
  • 4 burner elements
  • Self-cleaning oven
  • TOUCHMATIC electronic range control
  • Extra-large viewing window
  • Closed door broiling
  • INSTA-BROIL system with infrared heat

What is the timer/clock part number for the Amana ARGS7650E Electronic Range/Oven?

Timer part number 31944801, 1130766ne or AP4041311 for Amana ARGS7650E Stove

The ARGS7650E Electronic Range/Oven uses timer part number 31944801, 1130766ne or AP4041311. This part has been permanently discontinued by the manufacturer.

Do you have a failed Amana ARGS7650E Electronic Range/Oven control panel? Click Here:

Request Appliance Timer Service

We can repair or replace your faulty Amana ARGS7650E Electronic Range/Oven timer.

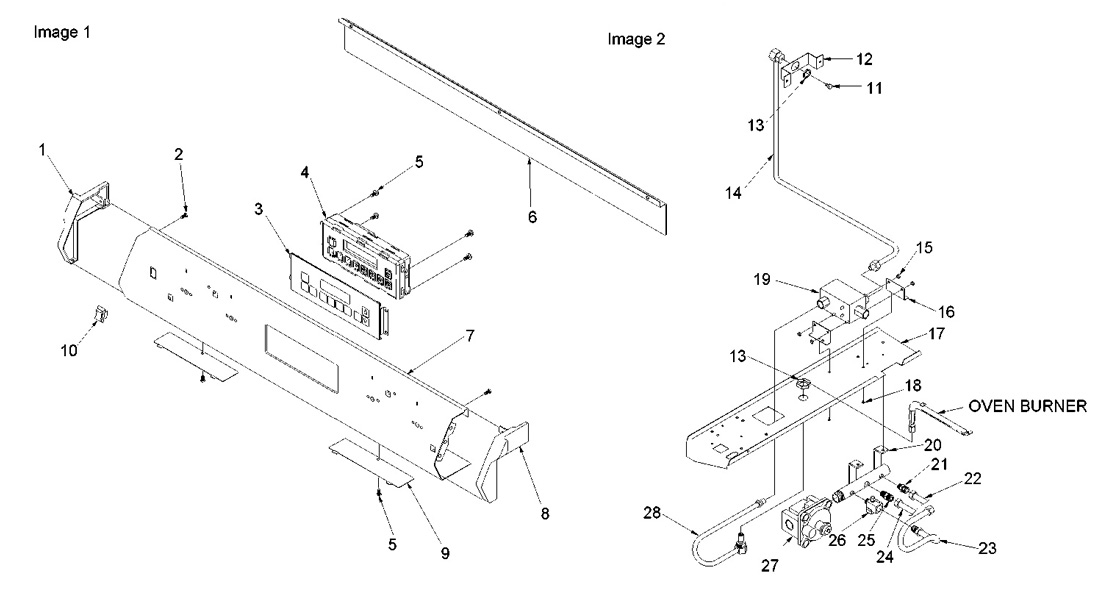

Schematic Diagram for Amana ARGS7650E Range

Amana ARGS7650E Range Schematic Diagram
Click image to enlarge

Appliancetimers.com Service requests for Amana ARGS7650E Electronic Range/Oven Timer

CityProblem DescriptionResolution
Grove City, PennsylvaniaAfter the board was returned the oven worked for 2 weeks. Then the same problem started. Oven heats but after a variable time get F3 error. Later the oven would heat again. Called and Mr. Simons to check wires and measure the resistance. Wires were ok and the resistance would go up with the heat (1591 ohms at 350 deg. Mr. Simons said to send it in under warranty.Beyond Repair
Grove City, PennsylvaniaOven heats but after a variable time the oven shuts down and I get a F3 error code. Can restart the oven and it runs for a variable time, Have replaced the Temp Sensor and the igniter.Repaired
Grass Valley, CaliforniaPin 4 of J5 overheated and pulled out; please replace the connector and check the full operation; if you can't replace J5, please solder a wire to the trace and I will use that instead. This is the last chance as I cannot find a replacement control. I will enclose a schematic; not sure if it is the exact one; but,it's close.Repaired
Three Rivers, Californiaturns on / lights up but temp. does not rise. Oven does not light. Put new glow plugs in a couple of years ago.Repaired
Dorchester, MassachusettsStarted ove,, smell of electronics burning, puff of smoke then blank.Repaired
Seattle, WashingtonDisplay is blank. Cycled power no help. No sound when any button is pressed. No Oven controlRepaired
Anchorage, AlaskaOld timer no longer responds and plastic pieces are breaking apart.Awaiting receipt of timer
Syracuse, New YorkThe plastic attachments to the Electronic Control Panel and faceplate have broken, making it impossible for the buttons to be pushed.Repaired
Syracuse, New YorkPart separated from range unit - needs replacement, and repair service says part no longer availableRepaired
Columbia, PennsylvaniaN/AAwaiting receipt of timer
Bexley, OhioTimer and oven do not workAwaiting receipt of timer
Dorchester, MassachusettsTurned oven o9n, small flash iof light then a puffof smoke. Oven dead.Repaired
Edwards, ColoradoDoes not operate the oven any longer. Continuous blink with a clock time - 5:54 (I think). Never saw a failure code.Repaired
Washington, District of ColumbiaWill not come on at all.Replaced with reconditioned timer
Edwards, ColoradoDoes not operate the oven any longer. Continuous blink with a clock time - 5:54 (I think). Never saw a failure code. Stove top continues to operate. Thank you.
If unable to repair, do you have a reconditioned or new one as a replacement? Last time I checked you did not. Also - FEDEX will not recognize my physical address so it may have to ship via United Parcel. Let's talk via email after your assessment. Ok?		Repaired
ChrstianstedIf you set the time it will run for awhile and then switch to flashing display and ususally loose a couple of minutes of time.
If you set the oven to bake and select a temp, the oven may or may not come on but most of the time it does, then it heats up to some intermediate temp like 200 degrees and stops. Then if I go through the steps to bake again it will start and continue to heat up to the required tempertaure. Sometimes it will continue baking and many times it will stop baking and cool down. i have baked things for 20 minuters or so that way sometimes. I don't know if the broiler works or not because the igniter is broken for the broiler and I haven't got the new part yet but I would bet that it is eratic as the clock and the oven side		Repaired
Chestnut Hill, Massachusettstimer separated from black overlay so buttons could not be operated. and when operating buttons the UP arrow seems to be inoperative.Repaired
Laona, WisconsinPower to control - No displayRepaired
Seaside, Californiaold one dead. need new one.Replaced with reconditioned timer
Seaside, CaliforniaIf I unplug my range and plug it back in the controller works for a minutes and then goes dead again. Evidently, this part is now obsolete and you are my only hope for repair. Let me know I, by some chance, you have one of these instock.Replaced with reconditioned timer

Common ARGS7650E timer/clock/ERC problems

I have a Amana gas oven model #ARGS7650E that had a short from the oven light. The circuit breaker did not trip but I have no electrical functions.
How do I get at the spark module to replace it in an Amana gas oven, model # XXXXX? From the back? From below?
I have an Amana Gas oven (ARGS7650E). The digital control display panel became detached on one side from the front metal casing and is now pushed back into the space behind it. How do I access the space behind the digital display?
I have an Amana gas oven: Model ARGS7605E. It has an electronic, digital clock/controller for the oven temp, selection (oven, broil), and the controller is not working. It clearly needs a new digital controller, but the parts ordering sites say it is no longer made. Except for this problem it is a fine oven. Is it possible for some other part to work or am i out of luck and have to purchase an entire new oven? If so, you can be it won't be an Amana. Mike
Amana Model ARGS7650E Oven Problem I have an Amana Model ARGS7650E. The top burners and the broiler all work fine. The oven igniter comes on and heats up, but the gas doesn't come on. Even when holding a cigarette lighter to the burner, it doesn't light.
bad electronic contral panel on Amana gas oven I have a 1998 Amana ARGS7650E with an electronic control panel that just quit working (so the oven is useless!). I am told by a repairman that this control panel is no longer available through the manufacturer. Any advice?
Trouble with an Amana oven posted by Ricky101 on Jun 06, 2008 Report abuse I have an Amana Model ARGS7650E. The top burners and the broiler all work fine. The oven igniter comes on and heats up, but the gas doesn't come on. Even when holding a cigarette lighter to the burner, it doesn't light. Comment by Ricky101, posted on Jul 26, 2008 I replaced the gas valve. While the burner comes on now, it doesn't light fast and we smell gas. Also, it is very slow to heat up. Watching the burner with the cover removed and the door closed, the flame will go from full to very small and back again. Not very fast and mostly the flame will just barely be visible most of the time.
Trouble with an Amana oven I have an Amana Model ARGS7650E. The top burners and the broiler all work fine. The oven igniter comes on and heats up, but the gas doesn't come on. Even when holding a cigarette lighter to the burner, it doesn't light.
