Amana ARGS7650SS Timer Repair
Amana ARGS7650SS Electronic Range/Oven Features:
- Slide-in range
- 4 burners
- Stainless steel
- Self cleaning
- Bake/broil converction
- Gas fuel type
Common ARGS7650SS timer/clock/ERC problems
Clock goes blank in the middle of baking |
|
| Manufacturer: | Amana |
| Model: | ACS3350AS Electronic Range/Oven |
| Description: | Amana ARGS7650SS clock goes blank in the middle of baking. Will I have to replace the clock or can this be fixed? |
| Resolution: | The clock needs to be replaced. When you replace the clock, reattach the connectors from the old clock to the new clock. |
What is the timer/clock part number for the Amana ARGS7650SS Electronic Range/Oven?
The ARGS7650SS Electronic Range/Oven uses timer part number 31944801, 31-31914801, PS2034176 or AP4041311. This part has been permanently discontinued by the manufacturer.
Do you have a failed Amana ARGS7650SS Electronic Range/Oven control panel? Click Here:
We can repair or replace your faulty Amana ARGS7650SS Electronic Range/Oven timer.

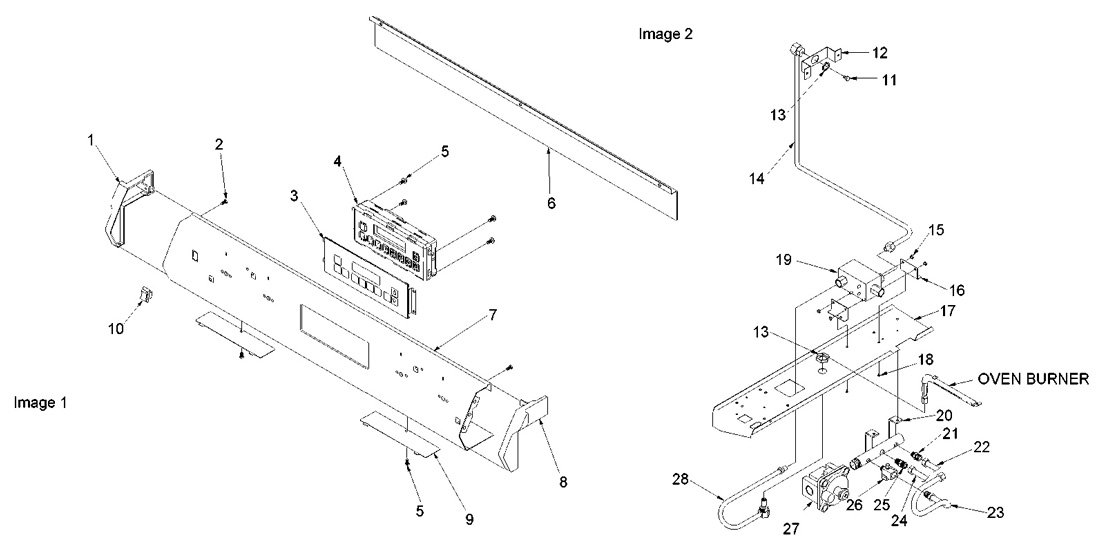

Schematic Diagram for Amana ARGS7650SS Range
Click image to enlarge
Appliancetimers.com Service requests for Amana ARGS7650SS Electronic Range/Oven Timer
| City | Problem Description | Resolution |
|---|---|---|
| Los Angeles, California | Same as many of the others: Oven shuts off after variable amount of time, at variable temperatures. Electronic time and temperature display disappears - screen is blank. | Repaired |
| Bethesda, Maryland | ONLY the clips or housing is broken. Man on the phone said that would cost 40$ Please just fix the clips part. I think it is the bottom three that broke off, Call my cell is there is a problem 3016747866 | Awaiting receipt of timer |
| New York, New York | I am a happy & returning customer : ) ApplianceTimers.com provided a replacement timer for this Amana oven in 2014 ... and it now needs to be replaced anew. The part numbers above were taken from my 2014 order. Currently, the "up" arrow button doesn't work well... read: it either does not work at all or the button sticks / numerals rise uncontrollably. The plastic face at the "up" button is also cracked. | Repaired |
| New York, New York | I am a happy & returning customer : ) ApplianceTimers.com provided a replacement timer for this Amana oven in 2014 ... and it now needs to be replaced anew. The part numbers above were taken from my 2014 order. Currently, the "up" arrow button doesn't work well... read: it either does not work at all or the button sticks / numerals rise uncontrollably. The plastic face at the "up" button is also cracked. | Repaired |
| Essex Jct, Vermont | 1. Oven temp stays at 100 degrees for an extended period before finally heating up to temp. 2.Cannnot regulate temperature once it does reach desired temp (cannot reduce) 3. Once at temp you must turn totally off and restart in order to reduce temp 4. Once oven is on for an extended period of time it will shut off spontaneously. 5. Oven temp will not be at the temperature displayed. | Timer inspected, no repairs necessary |
| St. Paul, Minnesota | oven will turn on, work for a while, then, intermittently, turn off and give the code: F3. A repair person came out and replaced the sensor, but that did not fix the problem. | Awaiting receipt of timer |
| New York, New York | After about 12 months of an intermittent problem (the unit would fail when overheated) it has now failed altogether. The unit continually cycles thru locking & unlocking the oven door (as if in cleaning mode) and all other functions do not work. The unit flashed "F-5" when this first occurred. | Repaired |
| skokie, Illinois | control stops responding to buttons when oven gets hot. display will flash on and off or go completely bank until the oven cools down. | Repaired |
| Richmond Hill, Ontario | Both the oven and broiler have stopped working. The digital timer's display characters all look ok, I hear a relay click when the oven or brolier is set to on, there are no fault codes, but neither the oven or broiler igniter ever starts to glow. The oven igniter itself is a relatively new part, which is why I don't suspect either igniter to be at fault. | Repaired |
| San Luis Obispo, California | Hi Howard, As I mentioned on the phone, the unit goes black after it gets hot, and shuts off the oven. | Repaired |
| Portal, Arizona | Dead! | Repaired |
| New York, New York | After about 12 months of an intermittent problem (the unit would fail when overheated) it has now failed altogether. The unit continually cycles thru locking & unlocking the oven door (as if in cleaning mode) and all other functions do not work. The unit flashed "F-5" when this first occurred. | Repaired |
| Annapolis, Maryland | Intermitten F3 (Temp probe) / oven turns off. Replaced temp probe to no avail. | Awaiting receipt of timer |
| South Glastonbury, Connecticut | There are a number of problems: 1) Broiler doesn't work 2) The display would go blank (no display) as the oven heated up and would come back on as the oven cooled. This is an intermittent problem that seems to be getting worse as time goes by 3) The oven eventually wouldn't heat as quickly as it used to. | Repaired |
| Vancouver, British Columbia | The timer will switch itself off after 20-40 minutes of reaching the baking temperature, switching off the oven. It appears that heat had damaged the circuits in the timer. | Repaired |
| Pittsford, New York | As others have reported to you: "Oven shuts off after variable amount of time, at variable temperatures. Electronic time and temperature display disappears - screen is blank. Repeatedly pressing buttons will eventually bring the display back and restart the oven, sometimes this takes up to half an hour or so. It doesn't seem to matter which buttons are pushed. When this began months ago it was an intermittent problem and seemed to happen at higher temperatures or when the oven was on for a longer period of time. Now it seems to happen every time the oven is used, within 20 minutes or so of starting it, and at any temperature. The gas range works fine - it's only the oven." | Repaired |
| Lincoln, Rhode Island | Display goes blank and oven shuts down after getting hot. Oven can be turned back on after 20min. However, shuts down again after 20 min of being on. No code show when this happens. | Repaired |
| Middletown, New Jersey | Issue is exactly the same as described by customer from Alberta Canada. Oven shuts off after variable amount of time, at variable temperatures. Electronic time and temperature display disappears - screen is blank. Repeatedly pressing buttons will eventually bring the display back and restart the oven, sometimes this takes up to half an hour or so. It doesn't seem to matter which buttons are pushed. When this began months ago it was an intermittent problem and seemed to happen at higher temperatures or when the oven was on for a longer period of time. Now it seems to happen every time the oven is used, within 20 minutes or so of starting it, and at any temperature. The gas range works fine - it's only the oven. | Repaired |
| Uintah, Utah | Shuts off while baking. If you tap on the control panel it starts working again | Repaired |
| DANBURY, Connecticut | Control panel screen would go black then return until it would not work at all. | Repaired |
