Amana Electric Slide-In Range ARRS6550WW Timer Repair

What is the timer/clock part number for the Amana ARRS6550WW Electric Slide-In Range?

Timer part number 31-315570-07-8 for Amana ARRS6550WW

The ARRS6550WW Electric Slide-In Range uses timer part number 31-315570-07-8.

Do you have a failed Amana ARRS6550WW control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Amana ARRS6550WW timer.

ARRS6550WW are also sometimes referred to using these Alternative Names/Model numbers

Whirlpool ARRS6550WW Electric Slide-In Range, ARRS6550WW/P1130686NWW, ARRS6550WW/P1130666NWW, ARRS6550E-P1143905NWW, ARRS6550E-P1130686NE, ARRS6550E-P1130666NE, ARRS6550WW/P1130691NWW, ARRS6550WW/P1130647NWW, ARRS6550LL/P1130666NLL, ARRS6550LL/P1130658NLL, ARRS6550LL/P1130647NLL, ARRS6550E-P1143905NE, ARRS6550WW/P1130677NWW, ARRS6550LL/P1130686NLL, ARRS6550WW/P1130658NWW, ARRS6550E-P1130677NE, ARRS6550LL/P1130677NLL, ARRS6550E-P1130691NE, ARRS6550LL/P1130691NLL, ARRS6550E-P1130647NE, ARRS6550E-P1130658NE

ARRS6550WW Schematic and Wiring Diagrams

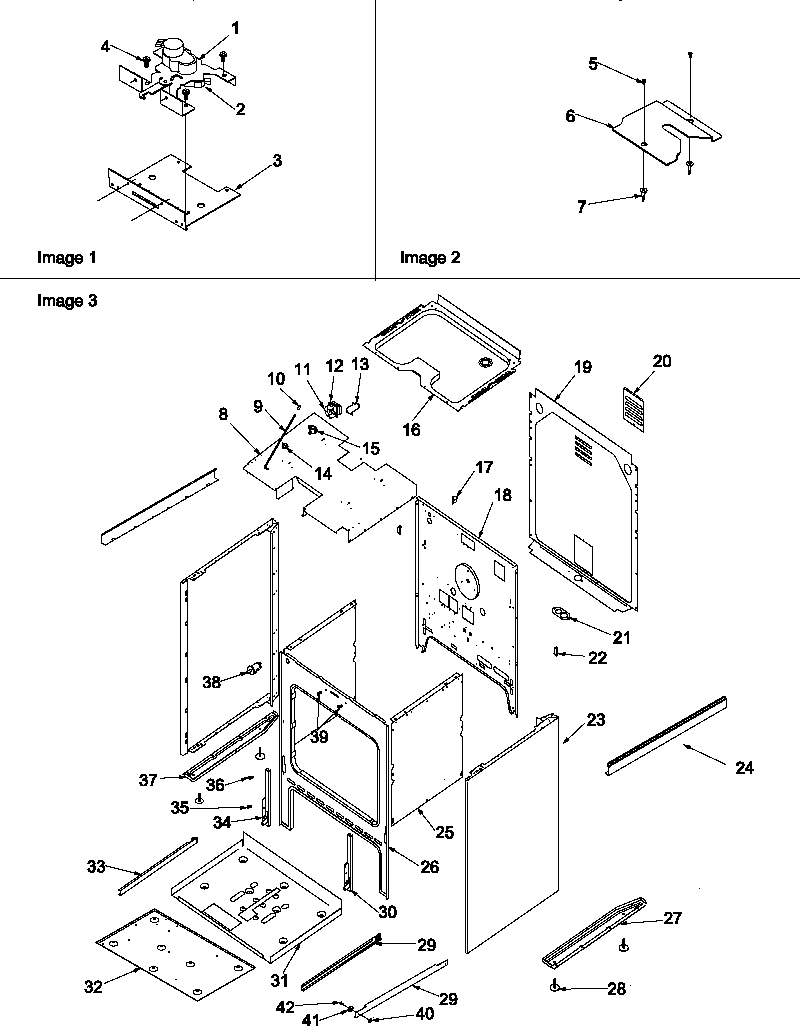

Cabinet Parts diagram
ARRS6550WW Electric Slide-In Range Cabinet Parts diagram

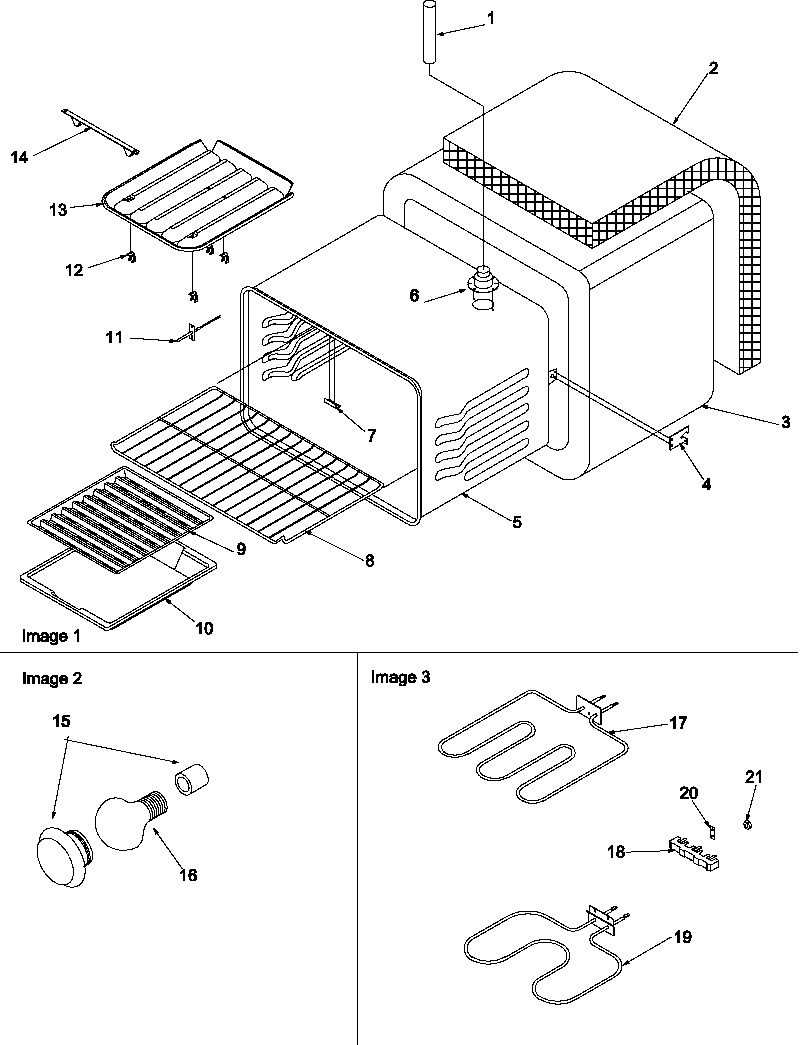

Cavity Parts diagram
ARRS6550WW Electric Slide-In Range Cavity Parts diagram

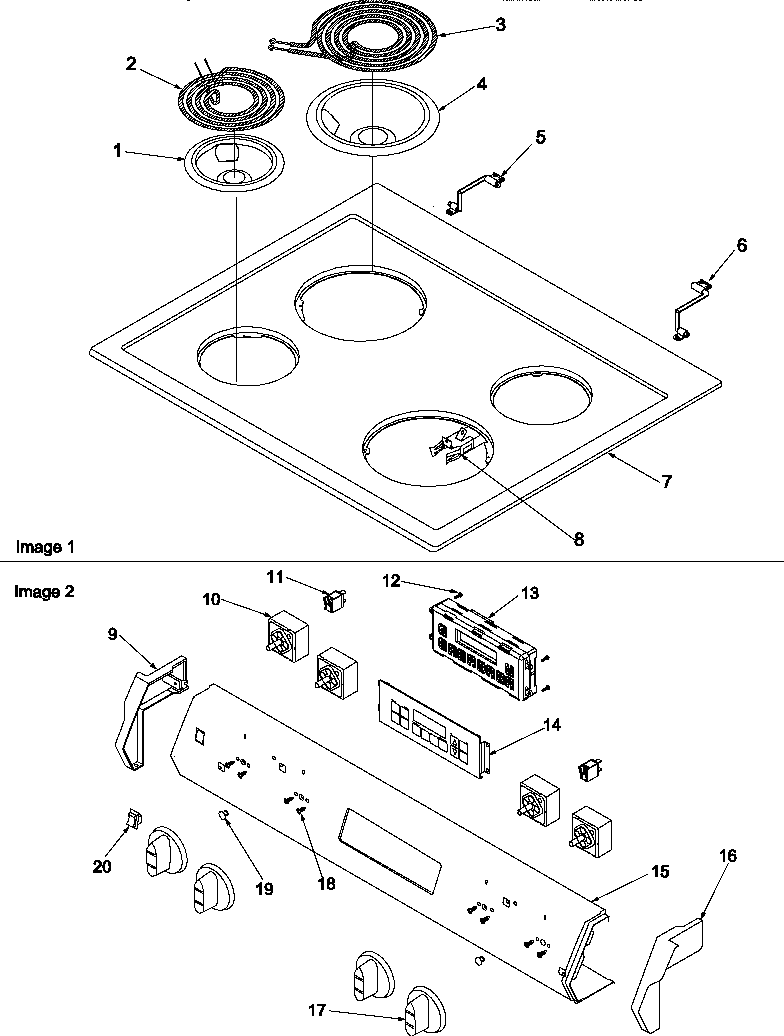

Main top and backguard Parts diagram
ARRS6550WW Electric Slide-In Range Main top and backguard Parts diagram

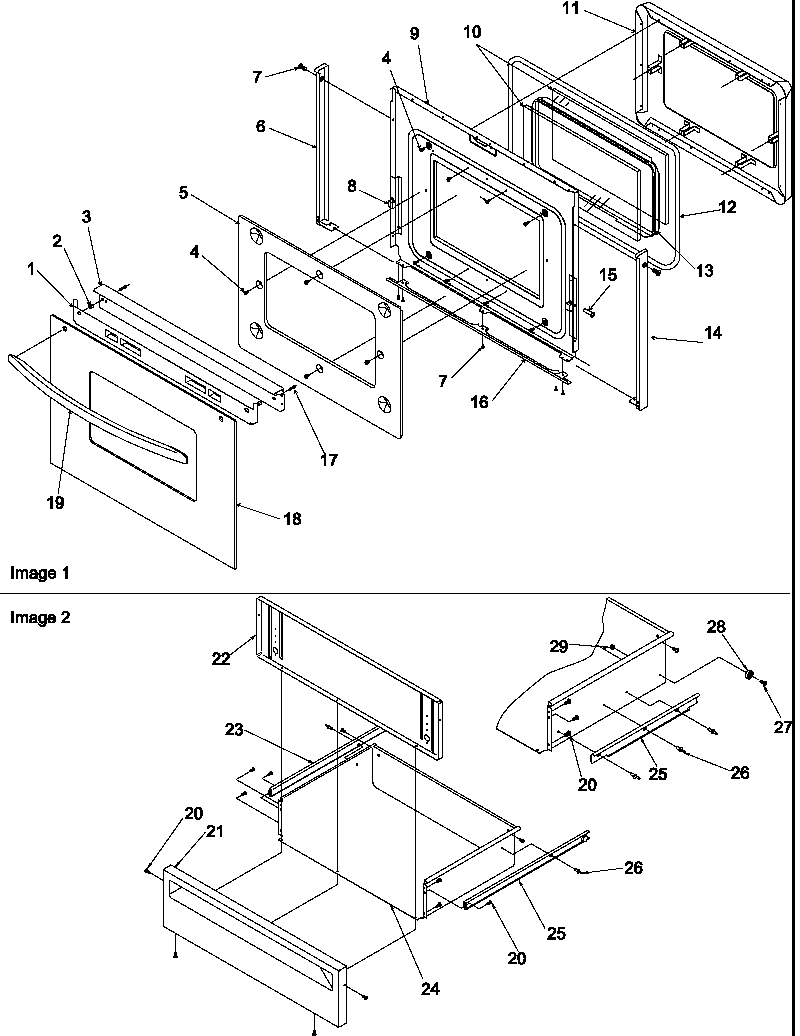

Oven door and storage drawer Parts diagram
ARRS6550WW Electric Slide-In Range Oven door and storage drawer Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Tualatin, OregonUnit was working fine until the lower oven element burned up, (like an arc welder).
Now the digital display is blank and none of the electronic controls appear to function.
The oven light still works and the cook top burners all work normal.

The original plastic membrane was replaced about 5 years ago. A couple of the plastic clips holding the two halves of the plastic circuit board chassis had been damaged do to excessive pressure needed to operate with the original worn out membrane. Replacement parts were not available so it was necessary to reinforce the the chassis to maintain proper alignment of the membrane and buttons.
I apologize for the extra inconvenience this may cause you. If our board is repairable and if you happen to have extra chassis pieces, please replace and charge us accordingly. Thank you.		Beyond Repair
Greenville, TexasIn bake, the Oven heats up past the set point by 50+ degF, but eventually turns off the coil. However the dispay continues to read the hot temperature even though the oven cools back down to room temperature. At this point the coil never cycles back on. Broil doesn't work at all.Timer inspected, no repairs necessary
Montrose, Coloradocompletely dead.Awaiting receipt of timer
Lynden, WashingtonOven will not function Timer readout -- no displayRepaired
Lake Oswego, OregonLET ME KNOW IF YOU HAVE ONE IN YOUR INVENTORYRepaired
