What is the timer/clock part number for the Amana ART6510WW Electric Range?

Timer part number AP3970755 or Y0315570 for Amana ART6510WW

The ART6510WW Electric Range uses timer part number AP3970755 or Y0315570.

Do you have a failed Amana ART6510WW control panel? Click here:

We can repair or replace your faulty Amana ART6510WW timer.

ART6510WW are also sometimes referred to using these Alternative Names/Model numbers

Whirlpool ART6510WW Electric Range, ART6510WW/P1143469NWW, ART6510WW/P1143439NWW, ART6510WW/P1143611NWW, ART6510WW/P1143630NWW, ART6510WW/P1143482NWW, ART6510WW/P1143460NWW

ART6510WW Schematic and Wiring Diagrams

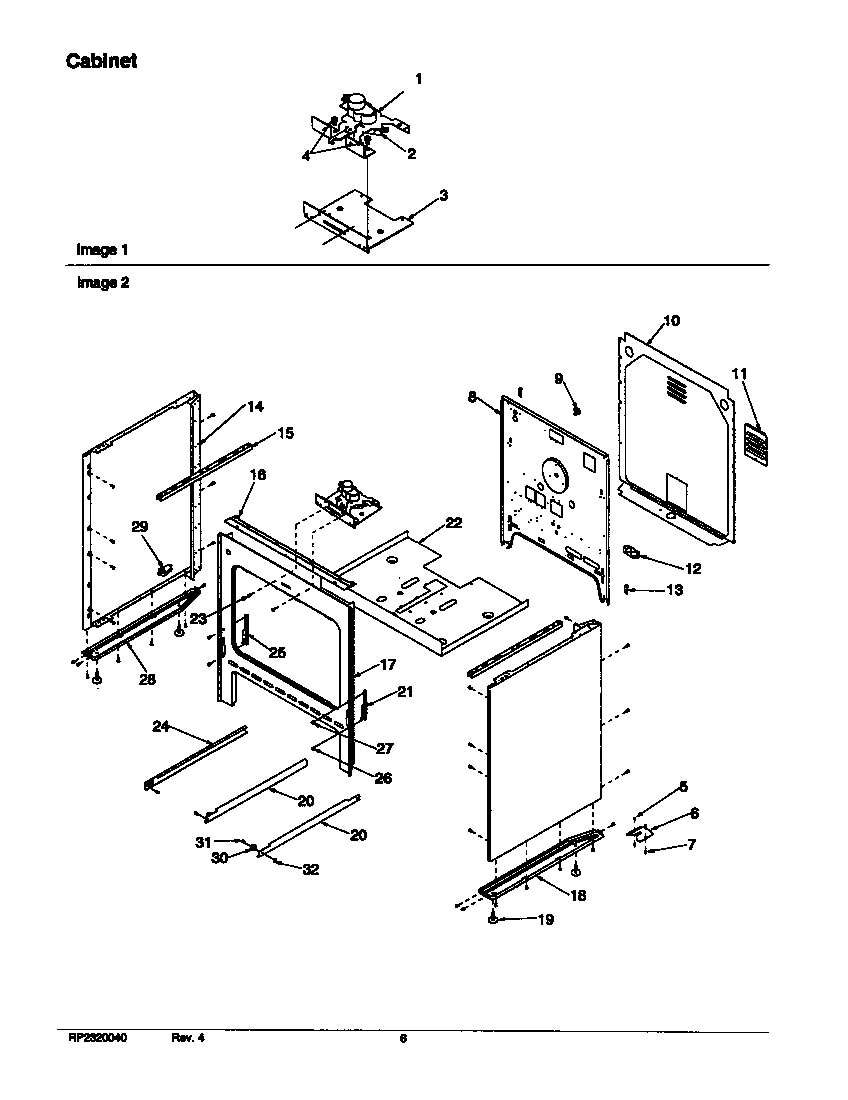

Cabinet Parts diagram

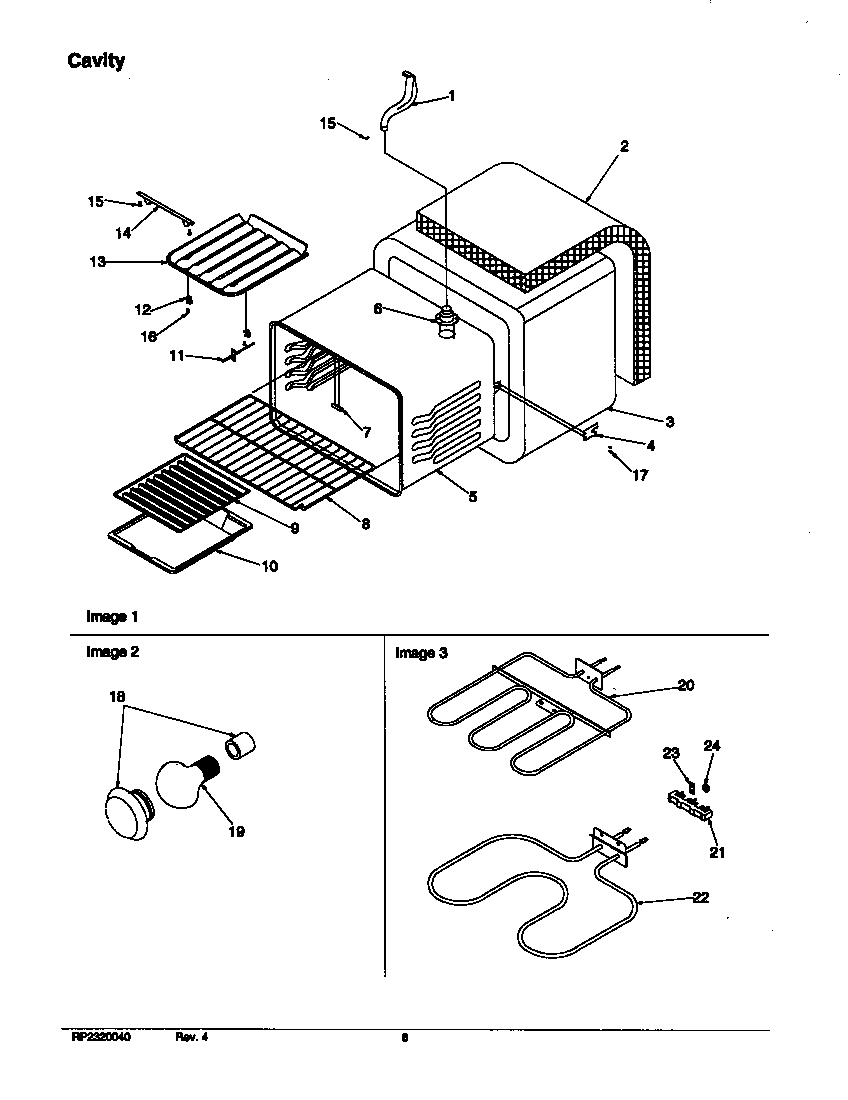

Cavity Parts diagram

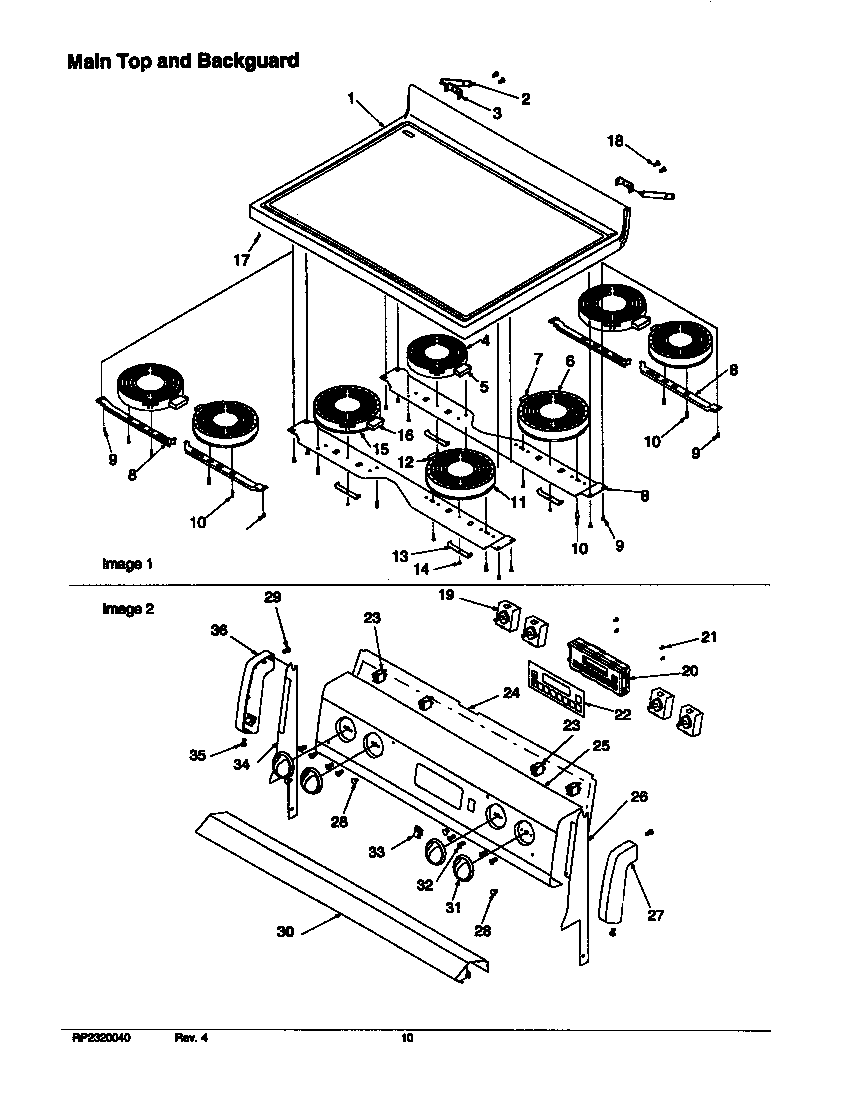

Main top and backguard Parts diagram

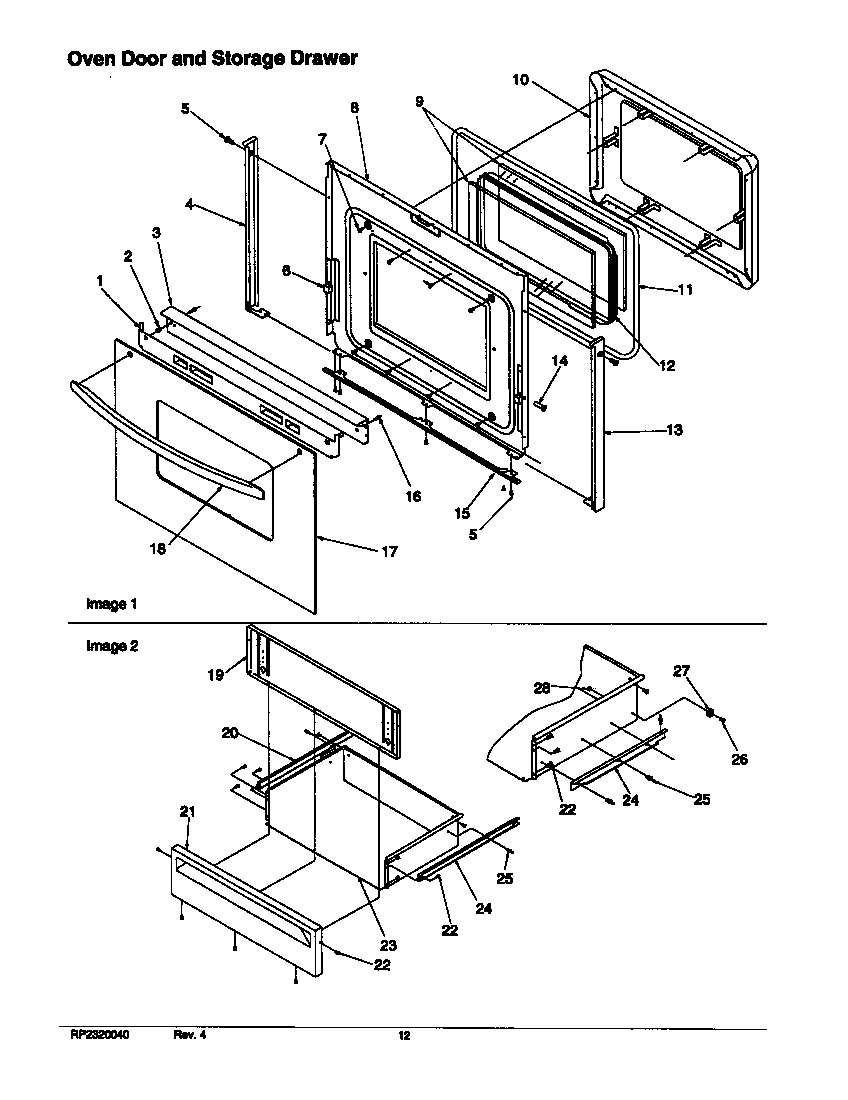

Oven door and storage drawer Parts diagram

Recent Service Requests

City	Problem Description	Resolution
Holden, Massachusetts	The tonal signal for timer and oven temperature beeps constantly.	Awaiting receipt of timer
Southbury, Connecticut	Oven will not turn on, timer is not working	Repaired
Yellow Springs, Ohio	Relays have failed. Black and semi melted contact points. The solder point on the board had failed. Re soldered and worked fine for several cycles. The contacts on the relays are burnt and show black charring inside the cover. Broiler is fine, Bale element in fine. Need a replacement. Looked for new relays on line but have been unable to efficiently find the correct relays in a timely manner.	Awaiting receipt of timer
Orem, Utah	Was plugged into a mis-wired outlet that applied 220V to the 120V leg. Blown transformer (at a minimum)	Repaired
lake wales, florida, Florida	TIMER QUIT WORKING AFTER A MOMENTARY POWER OUTAGE. LOCAL SERVICE COMPANY SAID THE TRANSFORMER WAS BAD AND REPLACEMENT WAS NO LONGER AVAILABLE.	Repaired
Mount Vernon, Ohio	CANT PROGRAM FOR BAKE OR BROIL	Repaired
Huntsville, Alabama	The screen is dark and I am not getting any response from it. The rest of the stove, being the four eyes, works fine.	Repaired
Huntsville, Alabama	The screen is dark and I am not getting any response from it. The rest of the stove, being the four eyes, works fine.	Repaired
Leesville, South Carolina	Oven temperature is not accurate , but bakes. The baking process will not brown food on top. The broiler component does not work at all. Have been told this is due to Electronic range contril mechanism. Part has been discontinued. I communicated with Howard Simons by e-mail on March 8, 2011 and received response on march 9. I am sending part for repair.	Repaired

Common problems for Amana Electric Range ART6510WW Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your ART6510WW timer-related problem.

I have an Amana oven model ART6510ww and the oven controls shows the time which is dimmer than usual and is flashing lock and can not set the oven. What needs to be done?

Not able to use oven. Lock light is continually blinking and "door" displays when attempting to use oven. Amana model ART6510WW. Repair ?

I have a Ewave over-the-oven microwave, when the door is opened the internal light comes on and when you cook the magnetron works but the turn table stopped working, the internal light no longer comes on, the internal fan stopped working and the external oven lights stopped working although the oven fan still works. What could cause these stoppages?

fREEZER DOESN'T FREEZE, BUT REFRIDGERATER 50 DEGREES. wE CLEANED COILS , FANS ARE WORKING, i SET THE DEFROST clock SO IT WOULD DEFROST, BUT HEATER DID NOT TURN RED. cOULD A BAD HEATER CAUSE IT NOT TO FREEZE OR COOL?

Amana oven, Electric wont bake or broil I have an Amana oven, elective, smooth top. Model ART6510WW. Recently, it quit broil or baking. Clues are as follows: 1. time just blinks. When try to bake or broil, it beeps and clock goes out for a couple seconds, then back to blinking. (I do hear a relay click when it goes out) 2. Resistance on bake element is 22 Ohm, Broil element is 19 Ohm. 3. Checked the latch, also cannot go into clean. Does not appear to be trying to clean (as I suggested in a help online). 4. 240VAC across 2 legs of source. Top burners seem to work Ok. My suspicions point to the ERC-III unit, but it is costly. Want to verify before taking this plunge. Please give suggestions.

Amana electric oven model #ART6510WW/P1143469NWW Hello, The oven element burnt off (I have a new one) close to its right connection wire. The female connector on that wire burnt off also and the wire thus fell into the cavity hole between the cavity and the cabinet. I can't find it to pull it out. Can I take the cavity out to get to it or do I have to pull the entire oven out and take the back off? Thank you, Jim
