What is the timer/clock part number for the Frigidaire CFEF372BC1 Electric Range?

Timer part number 318185830 for Frigidaire CFEF372BC1

The CFEF372BC1 Electric Range uses timer part number 318185830.

Do you have a failed Frigidaire CFEF372BC1 control panel? Click here:

We can repair or replace your faulty Frigidaire CFEF372BC1 timer.

CFEF372BC1 are also sometimes referred to using these Alternative Names/Model numbers

Electrolux CFEF372BC1 Electric Range, CFEF372BC3

CFEF372BC1 Schematic and Wiring Diagrams

Backguard Parts diagram

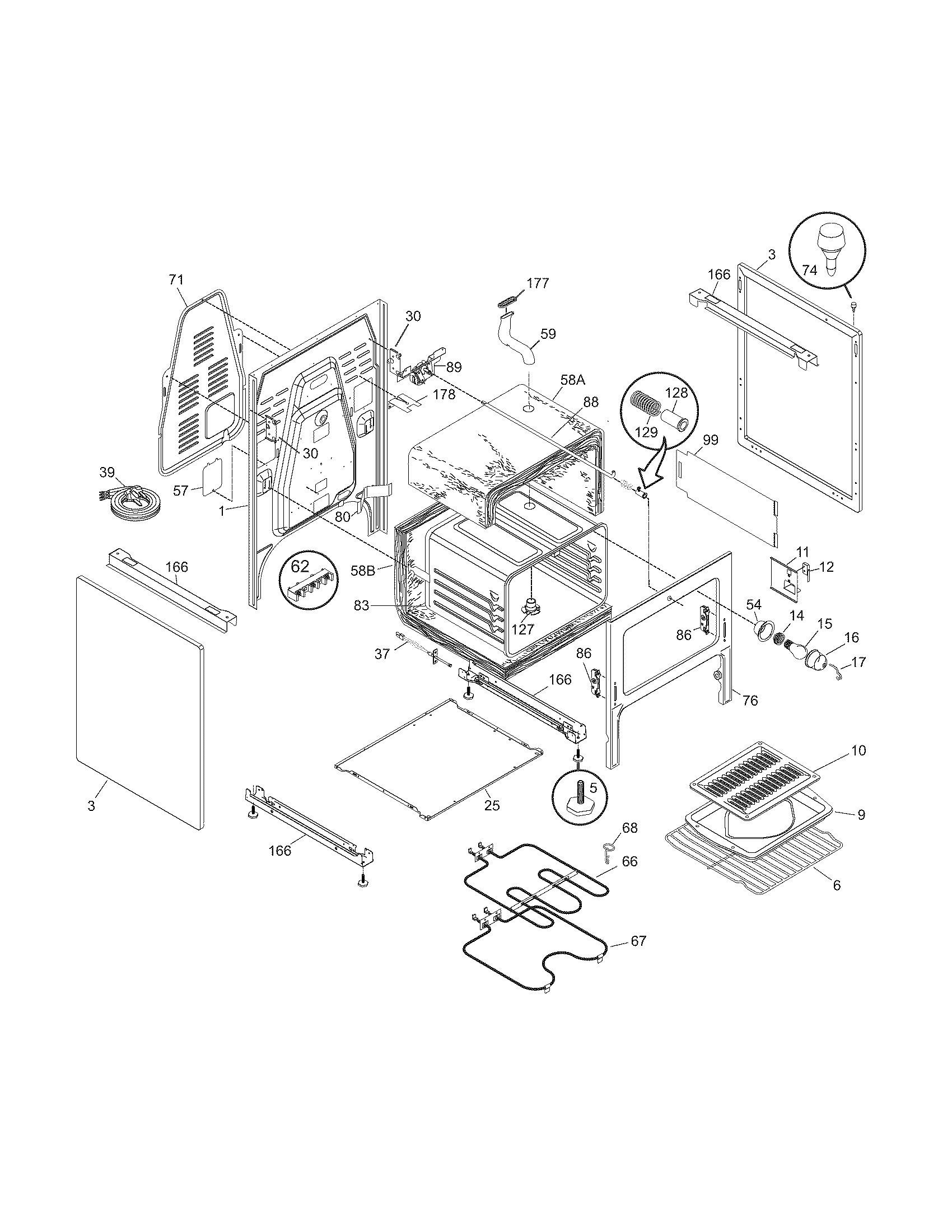

Body Parts diagram

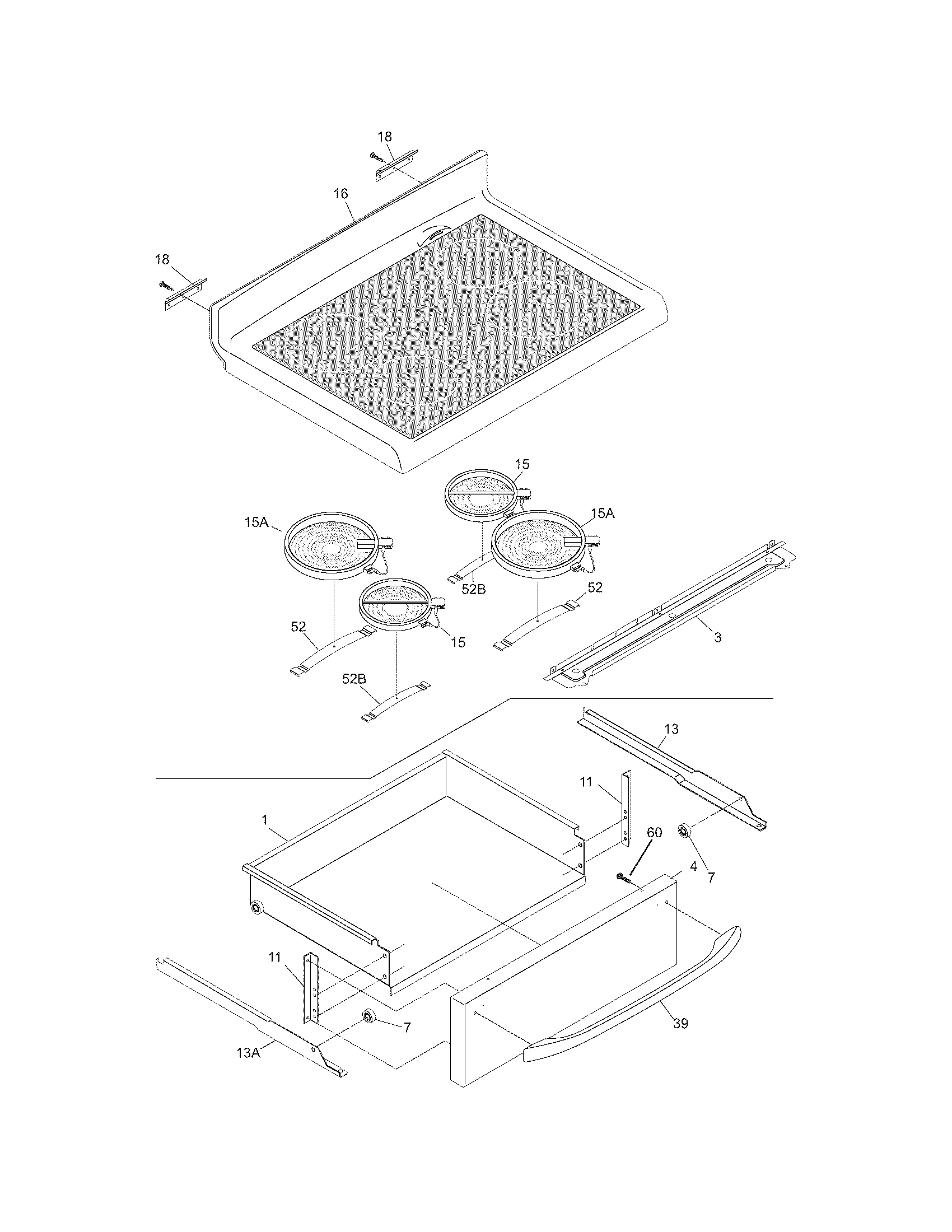

Top/drawer Parts diagram

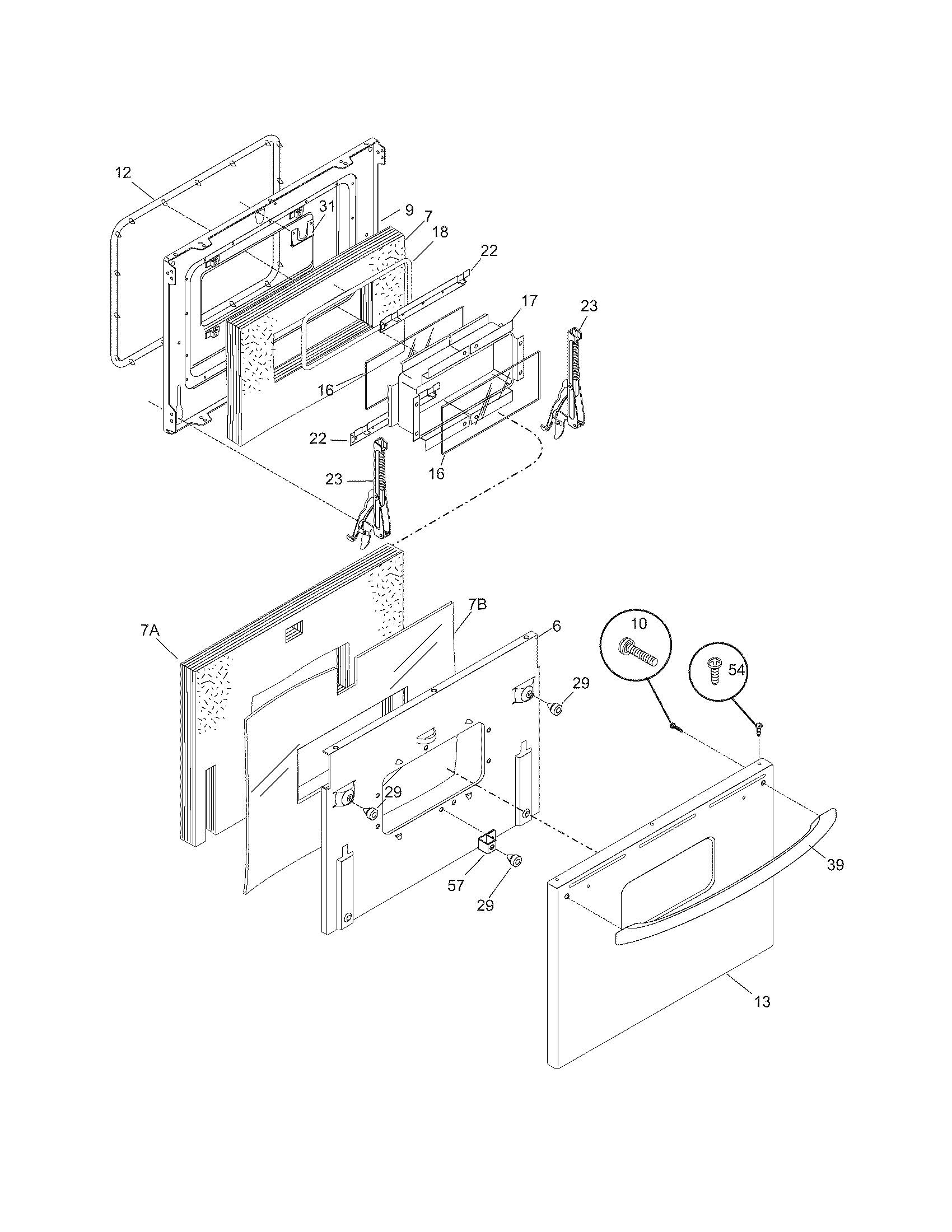

Door Parts diagram

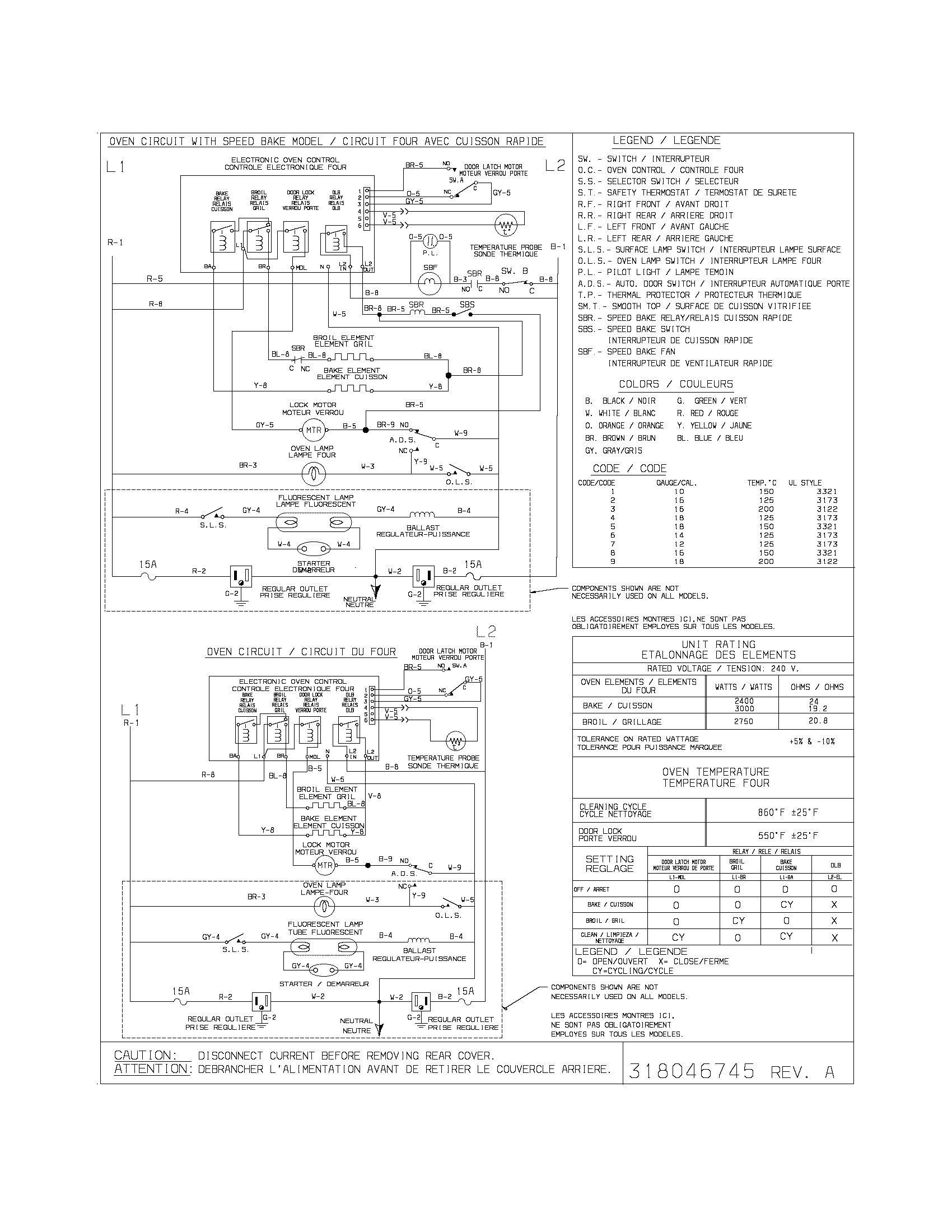

Wiring diagram Parts diagram

Recent Service Requests

City	Problem Description	Resolution
Mississauga, Ontario	F1 CODE on and continues to beep	Awaiting receipt of timer
Waterloo, Ontario	Stove-top elements function. Bake / broil elements not heating. Timer/Temp Select, etc., are all functioning-no heat @ oven.	Awaiting receipt of timer
Waterloo, Ontario	Stove-top elements function. Bake / broil elements not heating. Timer/Temp Select, etc., are all functioning-no heat @ oven.	Awaiting receipt of timer
Toronto, Ontario	I was in the middle of using the stove and I believe it was error code F1 flashed up and it beeped and then turned off. I am unable to turn on the stove since this. We tried unplugging the stove to rest but nothing seemed to work.	Repaired
Montreal, QuÃ©bec	Can adjust clock anyomore so the oven wont work. Broken plastic button.	Awaiting receipt of timer
Bradford, Ontario	After a power hit, the timer failed, displaying "OFF" for a while, no error code that matched those listed online or in the user's manual. Unplugged it for a long time, issue persists. Over time though , the display now says nothing at all. Now it won't even smile at me. Nothing. Zip. Ziltch. Maybe it doesn't like my cooking, in which case I'd understand. Let's get a replacement unit out here so I can resume burning my food. Thanks! p.s. this is a BLACK-coloured timer.	Repaired
Bowmanville, Ontario	Clock works, timer works but the oven temp etc does not turn on....no oven and no broiler will turn on	Replaced with reconditioned timer
Edmonton, Alberta	Water got in the back of the timer and fried the board now the timer will not work.	Awaiting receipt of timer

Common problems for Frigidaire Electric Range CFEF372BC1 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your CFEF372BC1 timer-related problem.

i have an EOC PN 31818530 from a Frigidaire oven and it will not go into self clean. The code that comes up is F8, which should be door switch, but I have check all the micro switches on the motor assembly and they are functioning properly. Is it possible that i am missing something with the switches or do i need a new ECO. As an FYI i used to be an applicance repair tech so i have a great understanding of appliances and how they work. One more question, do you know what resistor or diode i would want to check on the ECO and repalce as opposed to paying 400CAD for a new one. Thanks, Dwayne

Hi, I have a model # XXXXX Frigidaire oven. The clock and oven do not work. This model has a digital clock that also tells the oven temp,broil,etc. The range top works fine, no oven! It stopped working a few months ago, baked something at 450 and it died but came back to life after a day, not this time.

Hi all, I have a fridgidaire range and te self-cleaning cycle was interupted by a power out and stayed locked. A repar man came and says the entire clock unit needs to be replaced. I was told tat there is a way to reprogram/reset it instead. Can someone help....
