Frigidaire Range - Gas GPG35BPMX1 Timer Repair

What is the timer/clock part number for the Frigidaire GPG35BPMX1 Range - Gas?

Timer part number 5303269513 for Frigidaire GPG35BPMX1

The GPG35BPMX1 Range - Gas uses timer part number 5303269513.

Do you have a failed Frigidaire GPG35BPMX1 control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Frigidaire GPG35BPMX1 timer.

GPG35BPMX1 are also sometimes referred to using these Alternative Names/Model numbers

Electrolux GPG35BPMX1 Range - Gas, GPG35BPM1, 5995208864

GPG35BPMX1 Schematic and Wiring Diagrams

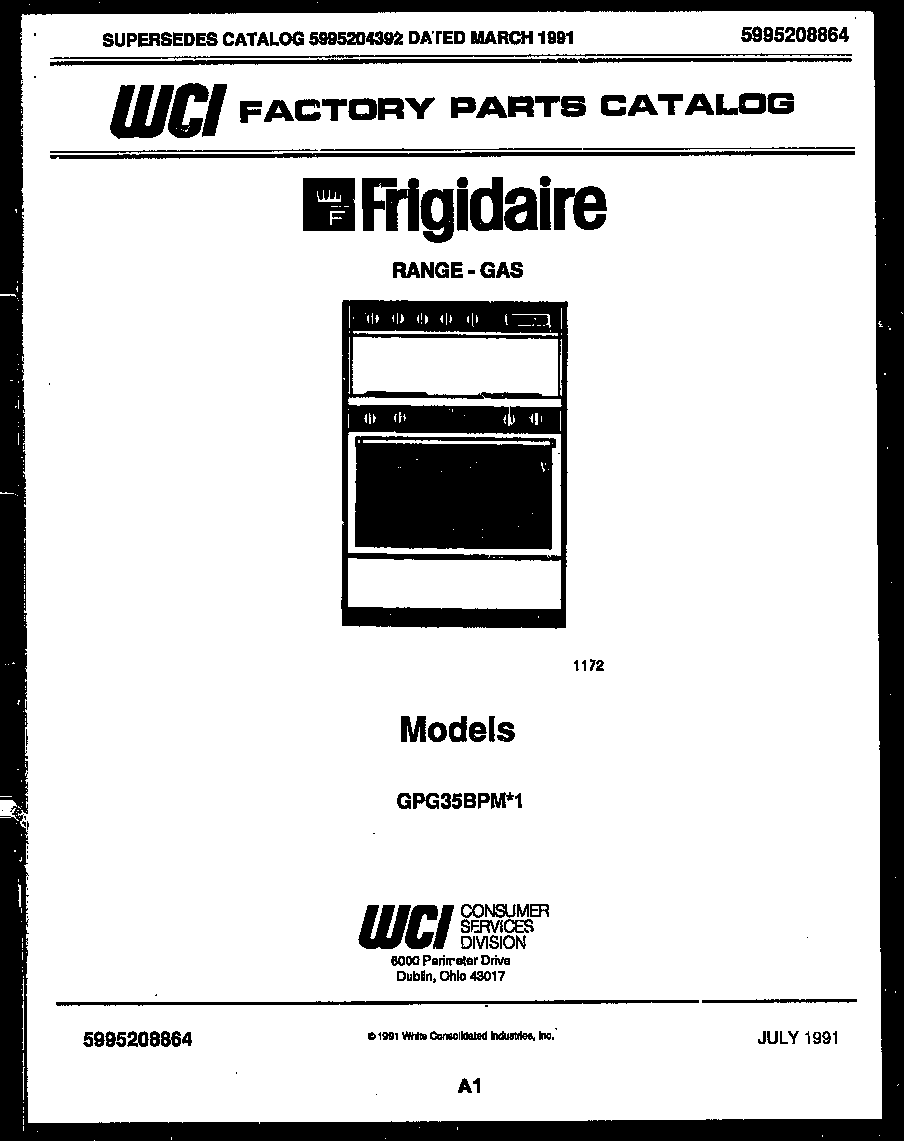

Cover Parts diagram
GPG35BPMX1 Range - Gas Cover Parts diagram

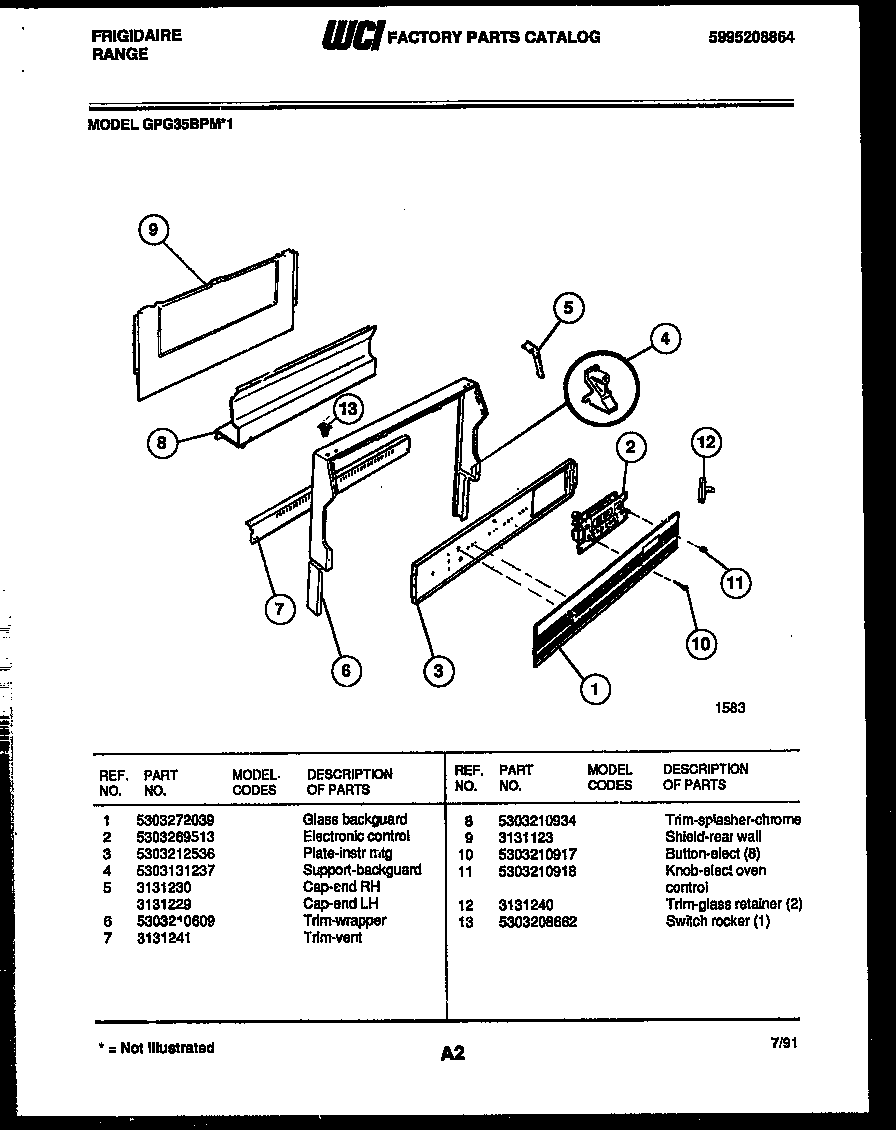

Backguard Parts diagram
GPG35BPMX1 Range - Gas Backguard Parts diagram

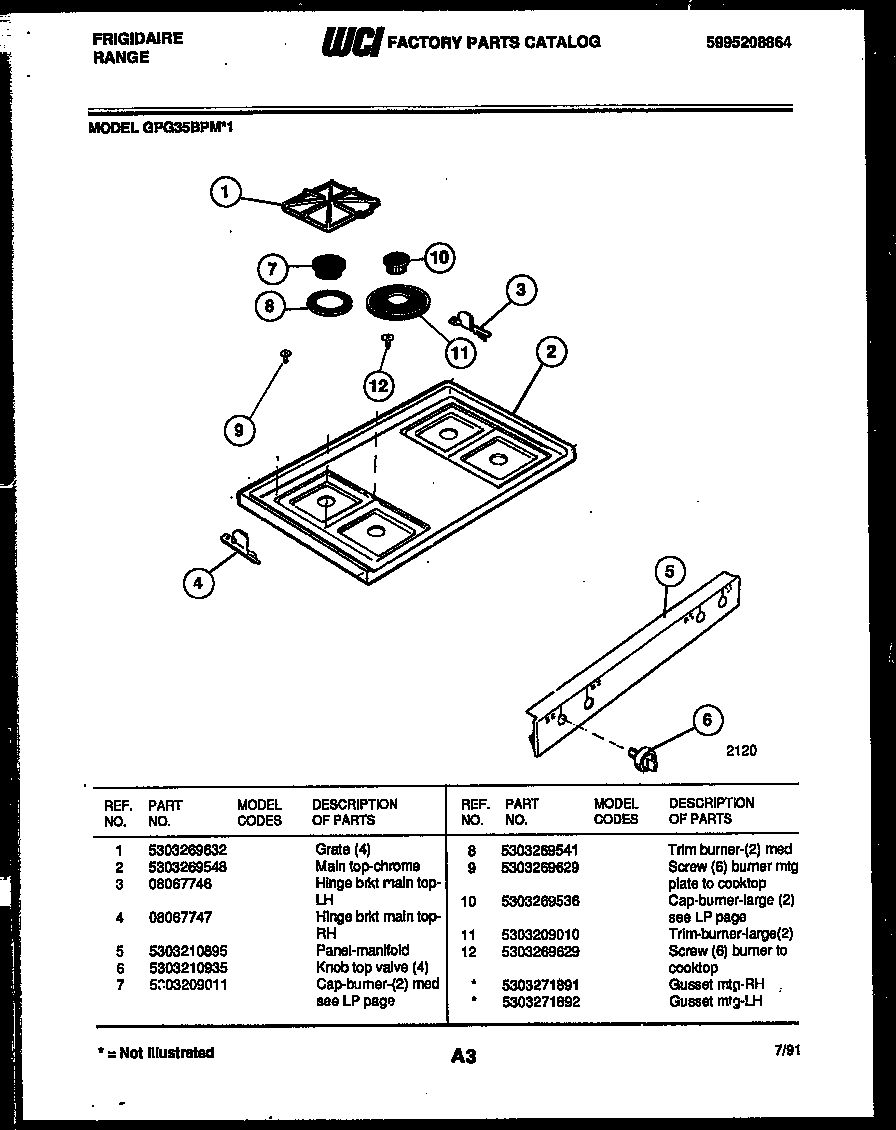

Cooktop Parts diagram
GPG35BPMX1 Range - Gas Cooktop Parts diagram

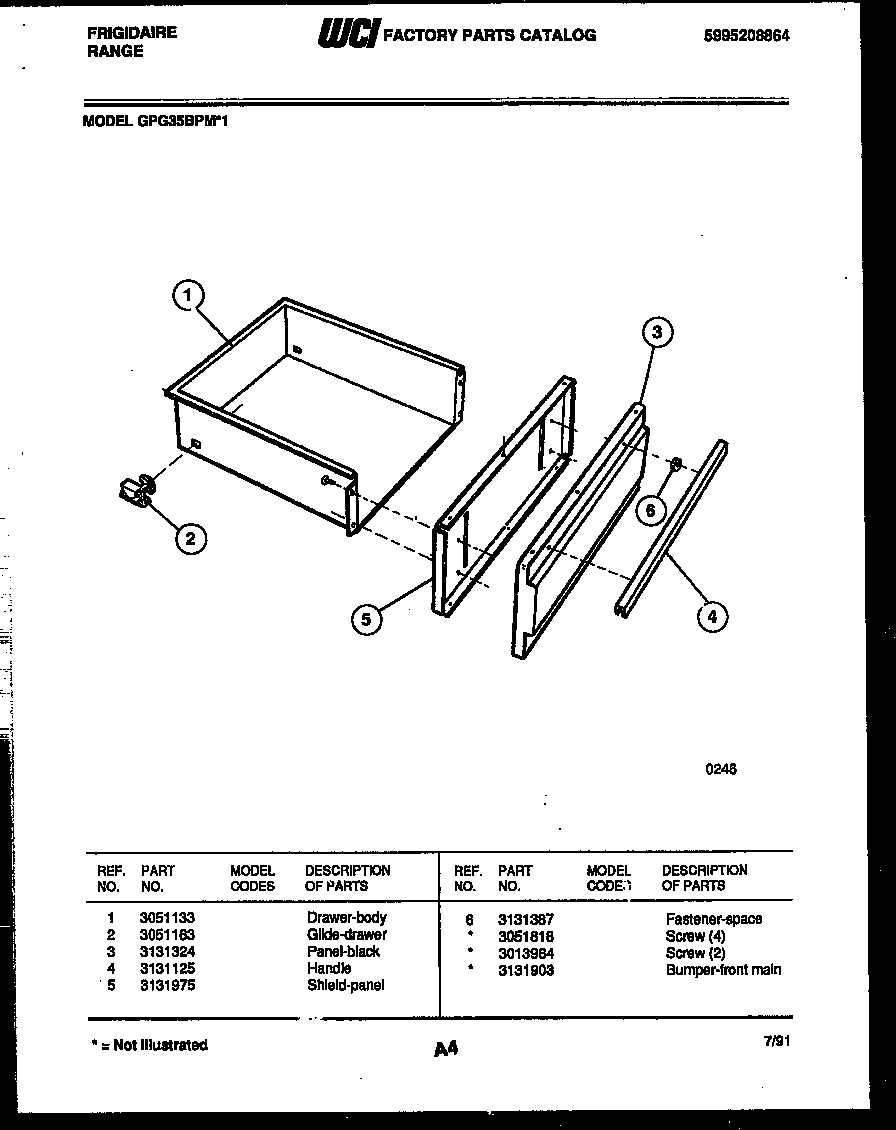

Drawer Parts diagram
GPG35BPMX1 Range - Gas Drawer Parts diagram

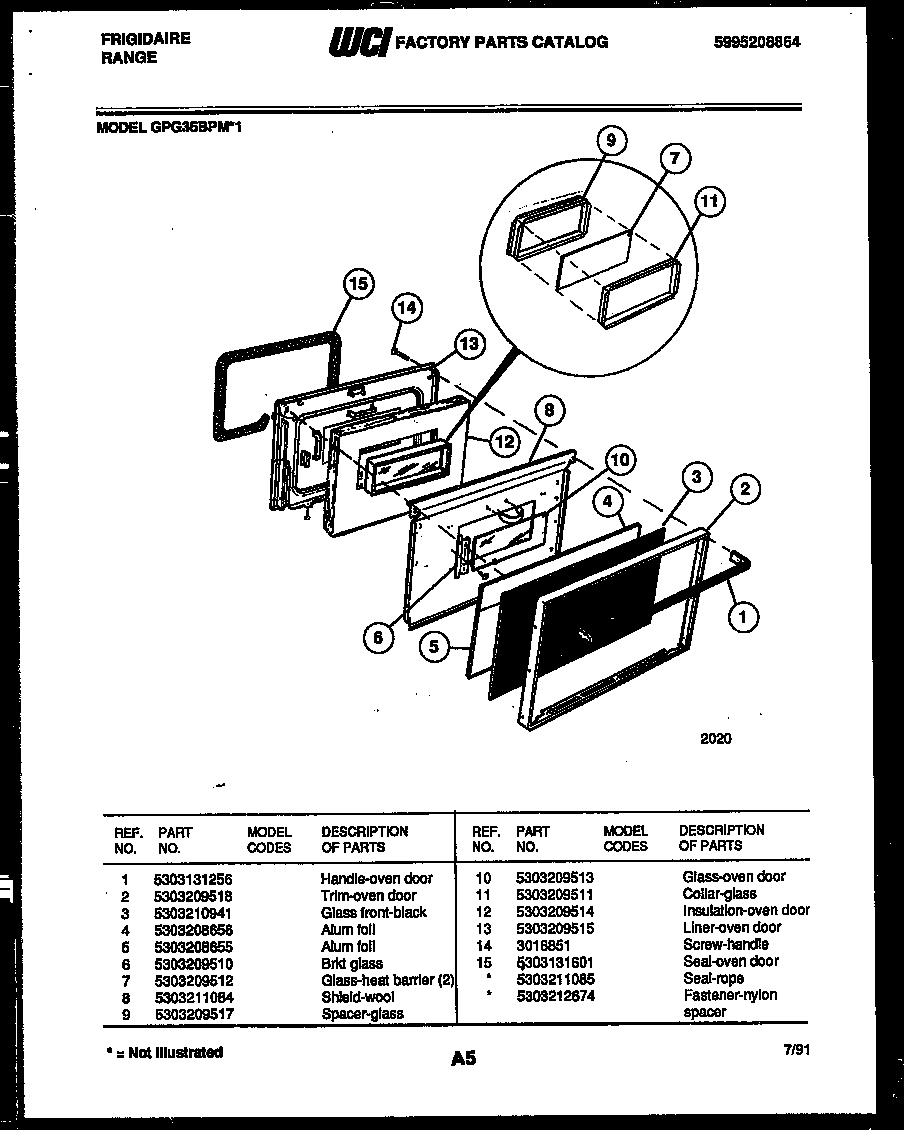

Door Parts diagram
GPG35BPMX1 Range - Gas Door Parts diagram

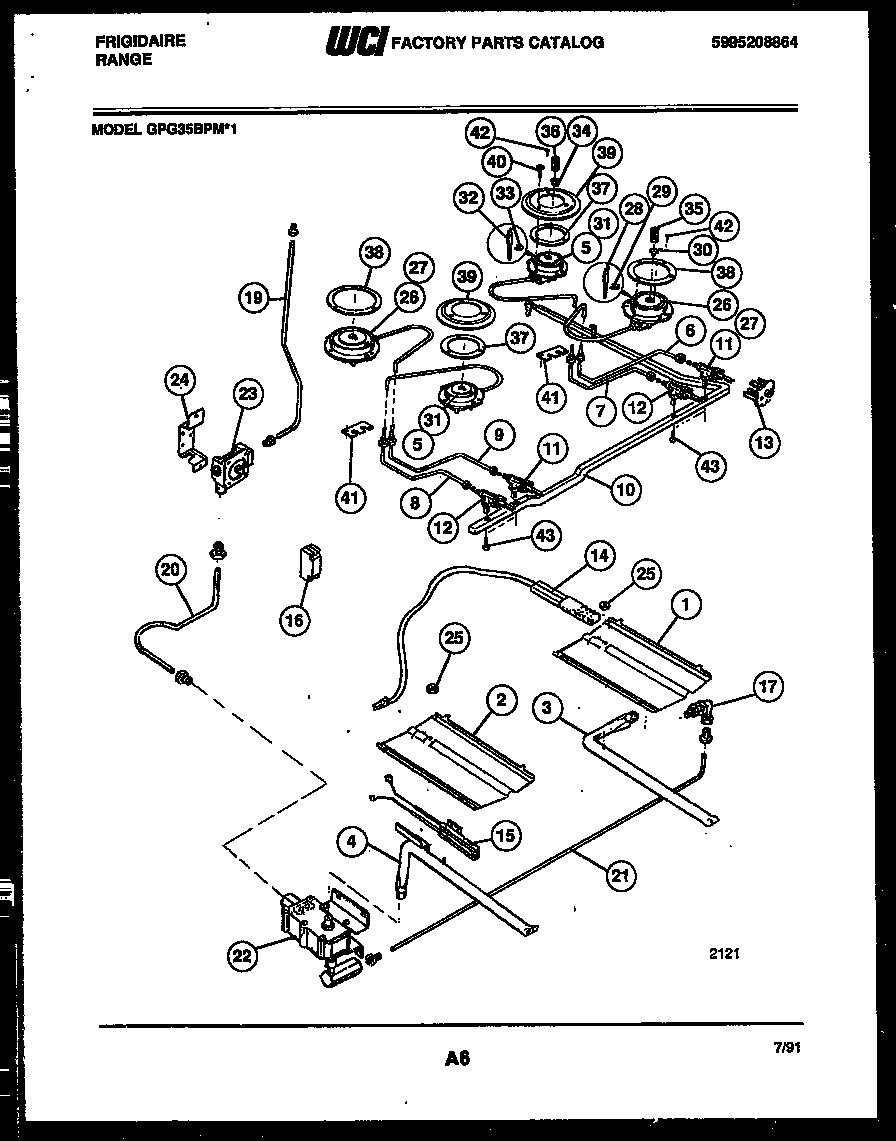

Burner, manifold and gas control Parts diagram
GPG35BPMX1 Range - Gas Burner, manifold and gas control Parts diagram

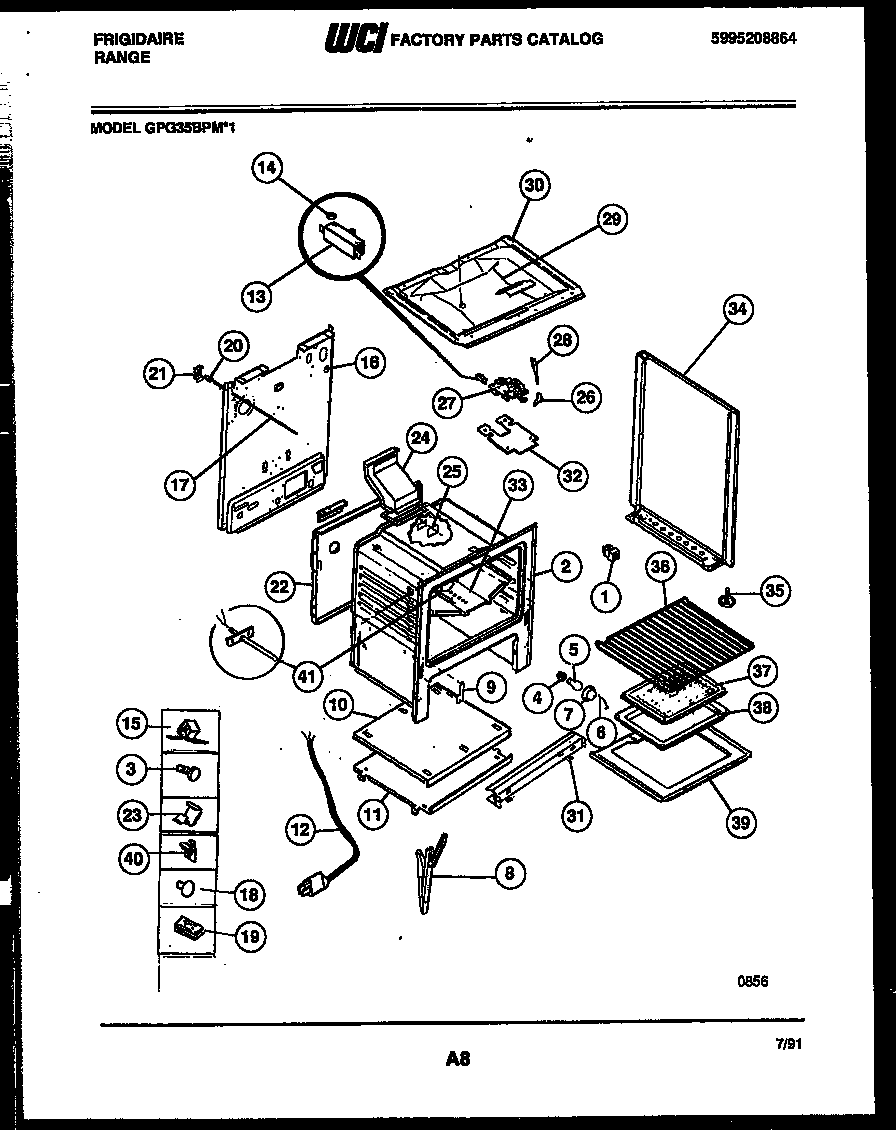

Body Parts diagram
GPG35BPMX1 Range - Gas Body Parts diagram

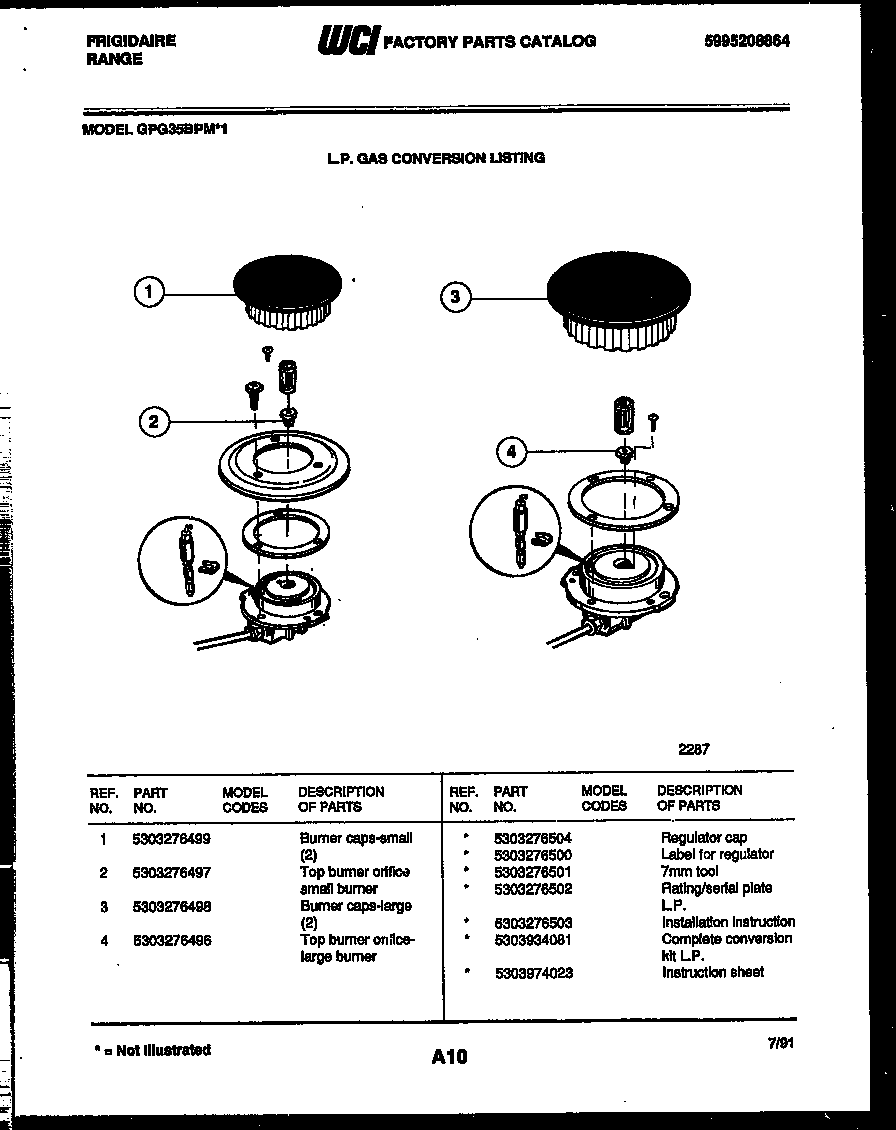

Burner Parts diagram
GPG35BPMX1 Range - Gas Burner Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Pottsville, PennsylvaniaMy father said he smelled an odd smell, then the clock went blank, and then the smell went away. There was no code. He told me the timer was replaced once before. After the failure, the oven itself would not work, but the stove top burners still worked without manually lighting them. This timer may or may not be the number I have listed. I think it is a different maker than the original part.Beyond Repair
