What is the timer/clock part number for the General Electric JGBP34GEP1 Gas Range?

Timer part number wb12k0005 for General Electric JGBP34GEP1

The JGBP34GEP1 Gas Range uses timer part number wb12k0005.

Do you have a failed General Electric JGBP34GEP1 control panel? Click here:

We can repair or replace your faulty General Electric JGBP34GEP1 timer.

JGBP34GEP1 are also sometimes referred to using these Alternative Names/Model numbers

GE JGBP34GEP1 Gas Range

JGBP34GEP1 Schematic and Wiring Diagrams

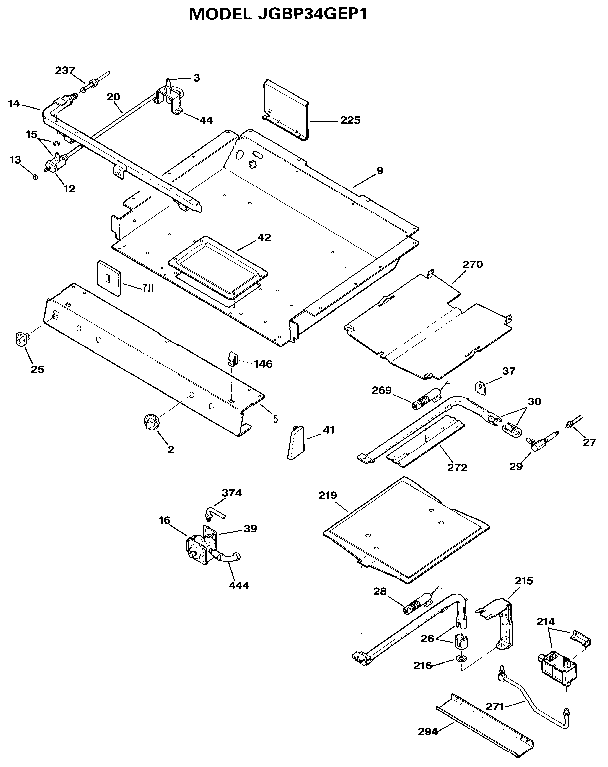

Burner section Parts diagram

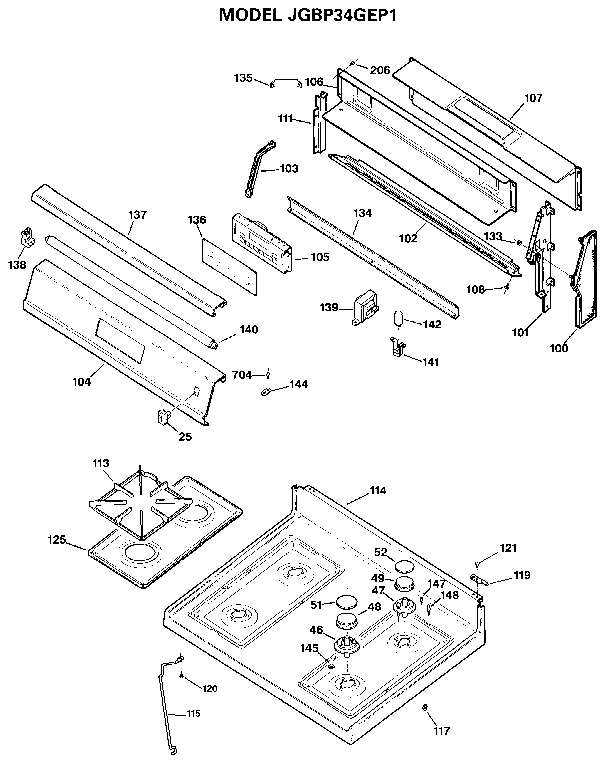

Main top section Parts diagram

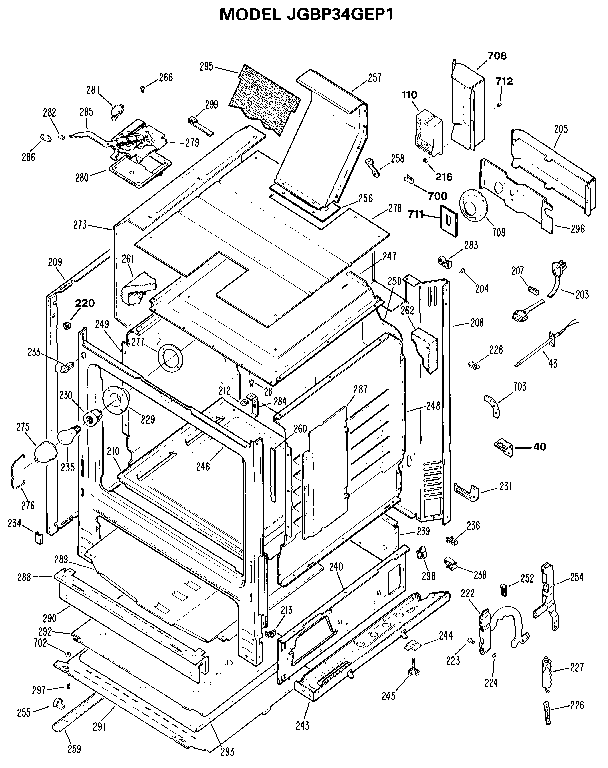

Cabinet Parts diagram

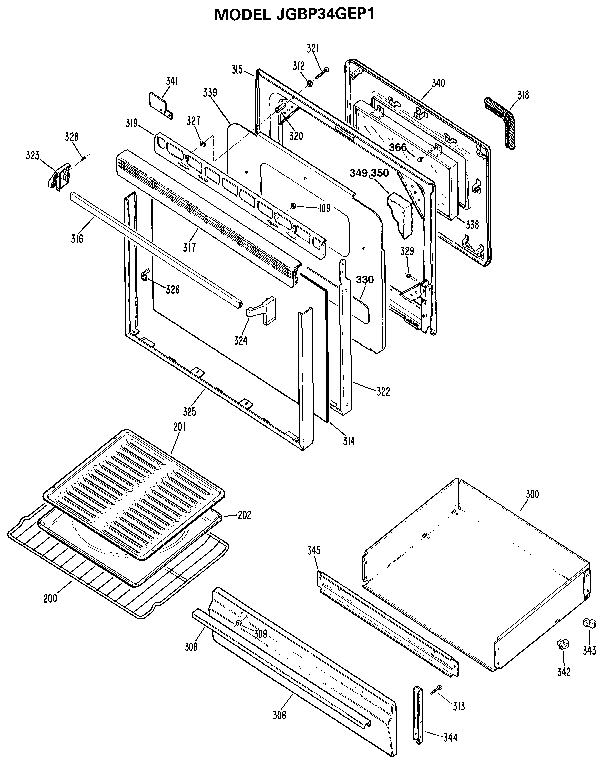

Door Parts diagram

Recent Service Requests

City	Problem Description	Resolution
North Vancouver, British Columbia	GE XL44 Gas Oven. Model - JGBP34GEP1WH. 24 Years old. Set oven to 350 deg. Oven usually heats up to 350 but sometimes does not get that hot. I swapped the broiler and bake igniters. Problem persists. I installed a new temperature sensor. Problem persists. Additional problems on heating: Once oven heats up to 350 oven shuts off, temperature drops significantly before oven fires back on. On occasions when oven heated up to 350 and then shut off I also tried re-setting temperature to 375. Oven did not fire up again until temperature dropped significantly.	Repaired
Leamington, Ontario	Bake display - have difficulty making contact Increase display - difficulty making contact Beeper sound barely audible	Repaired
Leamington, Ontario	Bake display - have difficulty making contact Increase display - difficulty making contact Beeper sound barely audible	Repaired
SAN BERNARDINO, California	FAILURE CODE F1 FLASH AND BEEP	Awaiting receipt of timer
Fayetteville, New York	clean, broil and bake buttons not responding.	Replaced with reconditioned timer
Soulsbyville, California	Since a sudden power outage, oven will not come up to desired temperature, even with the user adjustable +35%F adjustment set. Immediately following the power outage, there was an F code on the display, but I can't recall what it was, but it cleared itself. I replaced the oven sensor, but that had no affect on the situation. If it is not repairable, and you do have reconditioned or new units available, we would be interested in that.	Repaired
voorhees, New Jersey	Oven heats but is about 100 degrees below proper temperature. I have changed the probe sensor but no change in result.	Repaired
Oakland Gardens, New York	When engaged, the screen defaults to 100 degrees on bake, then after a few seconds, The temperature section goes blank. This occurs on both bake and broil	Awaiting receipt of timer
Aurora, Indiana	Oven baking temperature is always about 60 to 75 degrees F to cold. This is after having tried calibrating the display to heat up to 35 degrees hotter. It does help, but no where near needed. Unsure if the Control panel is the problem. Below are the various tests I've done on other components. Oven Sensor tests ok. At 1,065 Ohms of resistence Gas igniter (round variety) seems to be working ok, pulling 3.0 - 3.3 Amps when lighting, and glowing a nice bright orange, almost white colored. Gas safety valve seems to be ok, testing at 1 -2 Ohms of resistence. And lighting fairly quickly, withing 3-5 seconds of valve opening. The only other thing I can think of, is somehow setting the baking burner to flow more gas, burning hotter, but I don't know how. And even so, if the thermostat still reads the temperature too low, burning hotter probably wouldn't help, as it will just shut off sooner . Any help you could give would be much appreciated. God Bless, Daniel Clem	Awaiting receipt of timer
glenshaw, Pennsylvania	AFTER POWER OUTAGE - SHOWS CODE F1	Awaiting receipt of timer
Soulsbyville, California	Following a sudden power outage, panel indicated a failure code which I can't recall. After fiddling with it, the code went away, but the oven would no longer heat up to desired temperature. Even with the user adjustable setting at +35, the oven still is 25-75 degrees F lower than indicated by timer.	Repaired
Lutherville, Maryland	IF YOU PUSH THE BAKE BUTTON AND SET THE TEMP FOR BAKING, THE CONTROL WILL GO TO 100 DEGREES (AS IT IS SUPPOSED TO). IF IT IS CORRECTLY WORKING, THE TEMPERATURE BEGINS TO INCREASE AS THE RANGE HEATS UP. HOWEVER, WHAT HAS BEEN HAPPENING IS AFTER 15-30 SECONDS, THE CONTROL WILL CLEAR AS IF THE BAKE BUTTON WAS NEVER PUSHED. THIS PROCESS HAS TO BE REPEATED OVER AND OVER UNTIL FINALLY THE PROCESS PROPERLY BEGINS OR, AS HAS BEEN HAPPENING MORE OFTEN, THE RANGE NEVER BEGINS TO HEAT.	Awaiting receipt of timer
Scotia, New York	Get F1 code and beeping sound. Was intermittent, but now all the time and timer will not work.	Beyond Repair
Brookline, Massachusetts	F1 displays and bell rings. Oven and broiler do not work.	Beyond Repair

Common problems for General Electric Gas Range JGBP34GEP1 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your JGBP34GEP1 timer-related problem.

After removing the oven floor panel and the flame spreader I have access to the igniter. It is attached to a small bracket on the gas burner tube by 2 screws at approximately 7 o'clock and underneath the igniter body. Even with an offset screwdriver there is insufficient clearance to remove the screws. Am I overlooking something obvious or do I need a special tool? Any advice will be appreciated.

I have a GE gas rangeXL44 JGBP34GEP, Serial # XXXXX It has been moved to a camp and converted to LP gas. However, when plugged in it beeps with a message I believe is F4 ( I'm home so I'm not sure.) When it is plugged in briefly, the burners can be lit, the digital clock is correct, then it starts beeping. Getting a service tech to the area may be difficult as well as expensive. Can you give me a clue as to what is going on.

GE gas range XL44 both high and low broiler functions work but bake function won't.

GE gas oven Md @JGBP34GEP oven won't come on.. Tried 30 second reset. clock, clock work. When attempt to set oven, no red glow. How do you test ignitor bar?
