What is the timer/clock part number for the Frigidaire PGLEF385CB2 Electric Range?

Timer part number 318193201 for Frigidaire PGLEF385CB2

The PGLEF385CB2 Electric Range uses timer part number 318193201.

Do you have a failed Frigidaire PGLEF385CB2 control panel? Click here:

We can repair or replace your faulty Frigidaire PGLEF385CB2 timer.

PGLEF385CB2 are also sometimes referred to using these Alternative Names/Model numbers

Electrolux PGLEF385CB2 Electric Range

PGLEF385CB2 Schematic and Wiring Diagrams

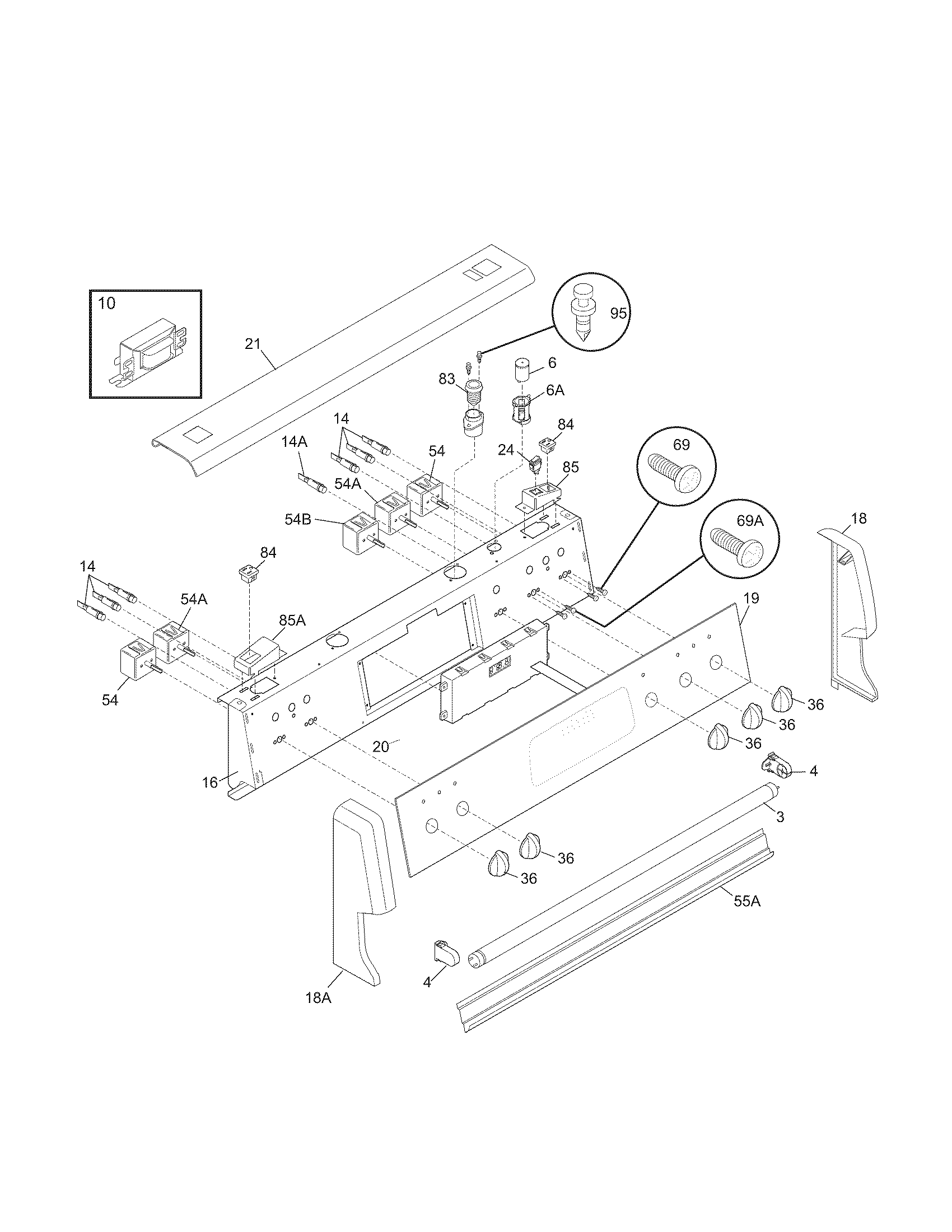

Backguard Parts diagram

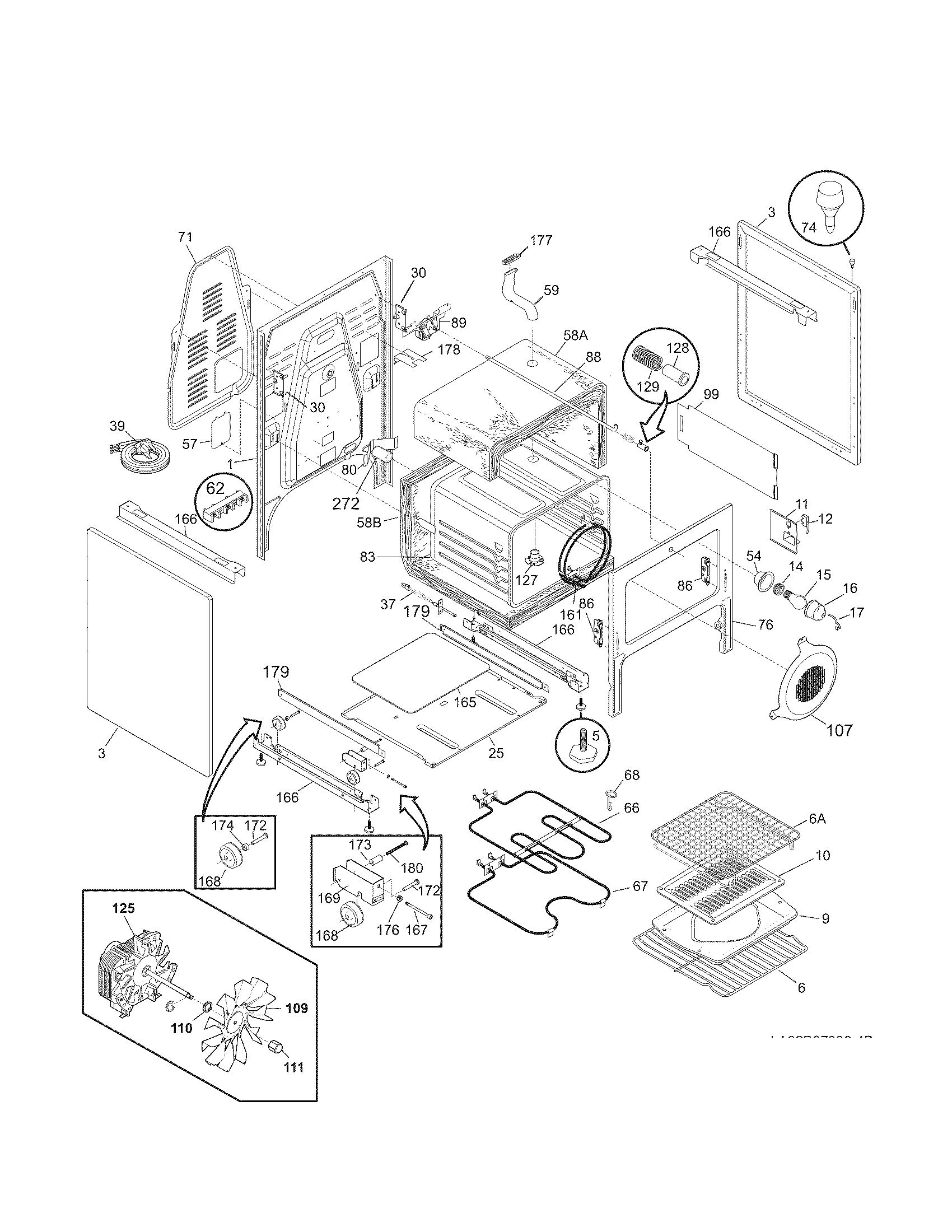

Body Parts diagram

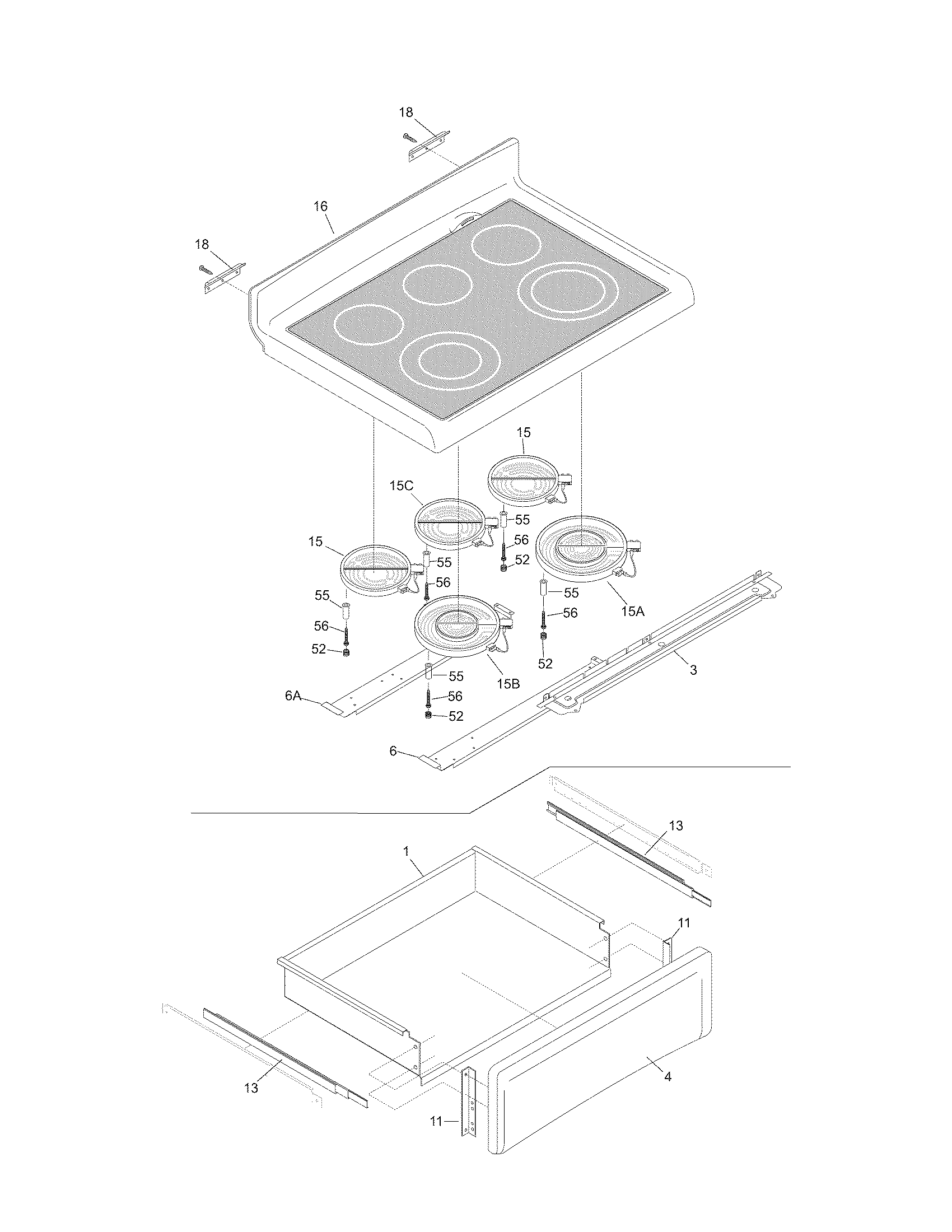

Top/drawer Parts diagram

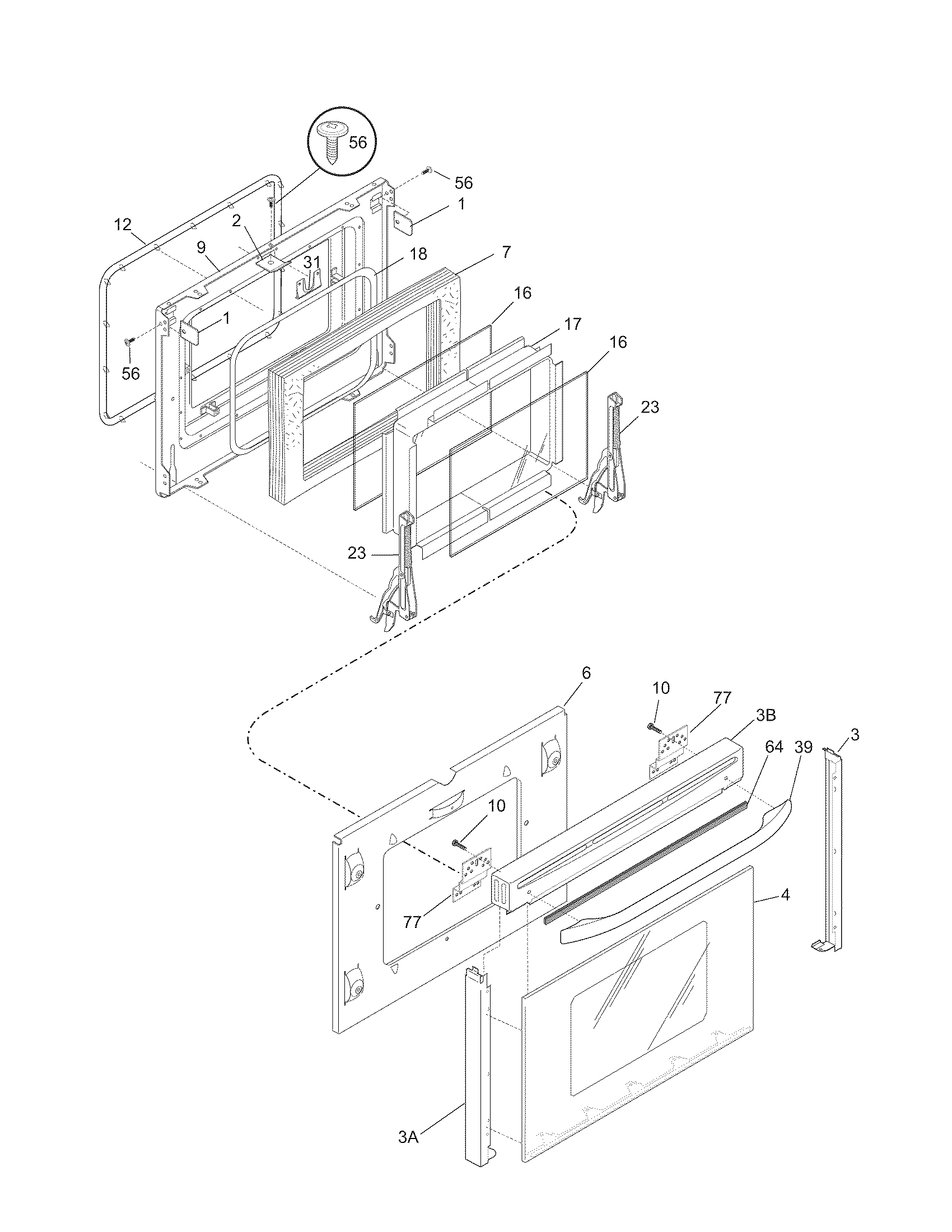

Door Parts diagram

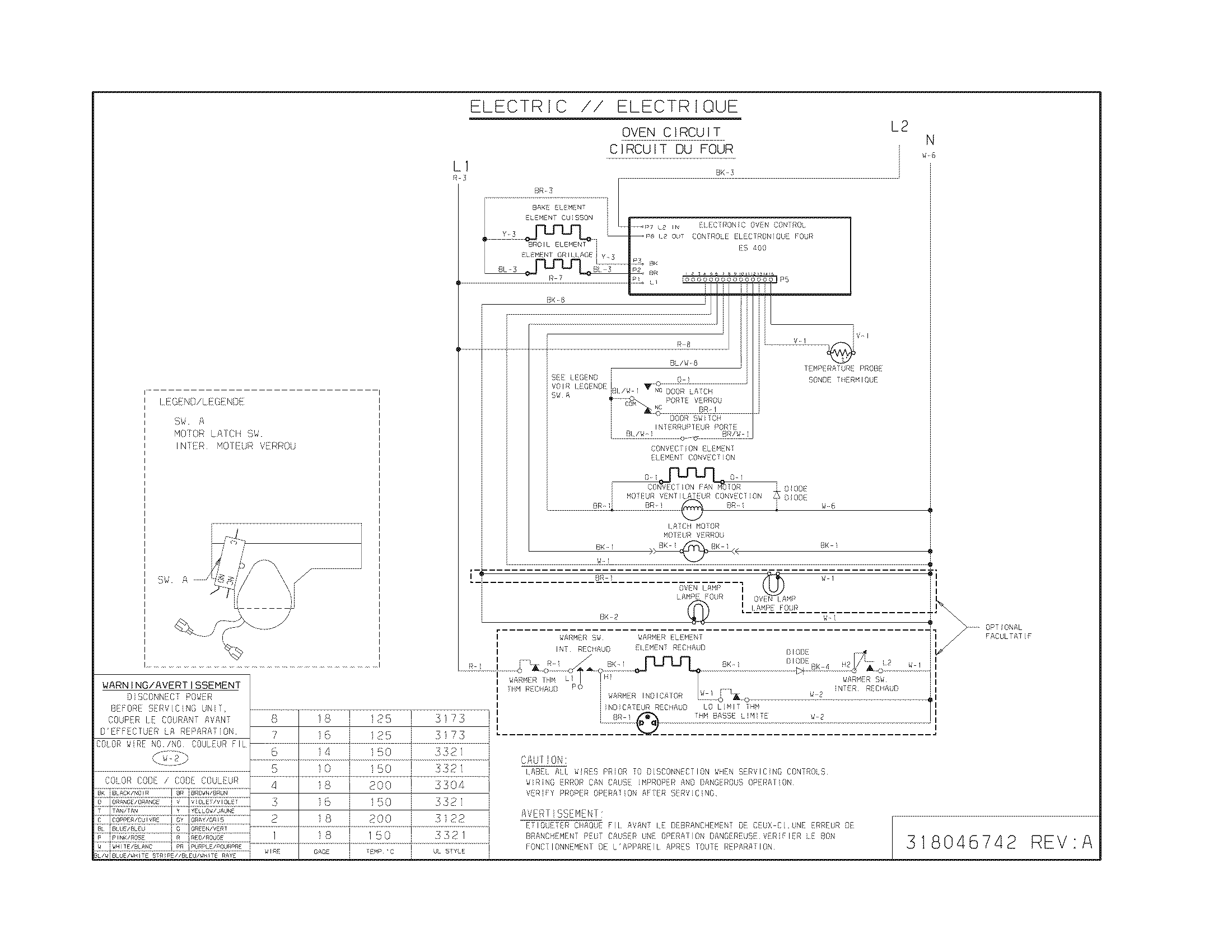

Wiring diagram Parts diagram

Recent Service Requests

City	Problem Description	Resolution
Coquitlam, British Columbia	board has arced (burnt) Need replacement (beyond repair)	Awaiting receipt of timer
NIAGARA FALLS, Ontario	TIMER IS BLANK	Awaiting receipt of timer
NIAGARA FALLS, Ontario	BLANK	Awaiting receipt of timer
Red Deer, Alberta	The timer appears to work as normal. The buttons work and the display shows information as normal. The iven will not heat even though it shows the element as being on.	Repaired
Calgary, Alberta	Neither oven elements, (bake or broil), will heat up. Display works normally and shows selected temperature and element bar. No fault codes displayed. Convection fan works ok.	Repaired
Waterloo, Ontario	Loud Pop sound after turning the oven. Circuit breaker tripped. Afterwards, nothing on display and nothing related to the oven is working. Top burners, and lights are fine. As discussed on the phone today, please send me a new control unit (electronics w/o the box).	Replaced with new in-stock timer
Cambridge, Ontario	Display turns on it shows its working but stove elements dont heat up	Repaired
Fort McMurray, Alberta	All of the buttons function properly and display works properly; however neither the top nor bottom stove element heat up.	Repaired
Napanee, Ontario	Current control board faulty - range elements work, oven not functional.	Awaiting receipt of timer
Calgary, Alberta	Large pop and then smoke from control panel, oven would not work nor anything on display besides clock.	Beyond Repair
Mississauga, Ontario	I heard a pop and the home circuit breaker went. I reset the breaker and teh dispay was gone. It shows tme, but none of the oven functions work any longer. stove top works fine.	Replaced with reconditioned timer
Lakefield, Ontario	No timer or oven control. Dead.	Awaiting receipt of timer

Common problems for Frigidaire Electric Range PGLEF385CB2 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your PGLEF385CB2 timer-related problem.

Hi all, I have this oven and just the other day the oven part conked out. The elements on the top of the oven work as normal so we can still cook on the top of the range however, the oven doesn't work anymore. I've checked the fuses, they are not burnt. It didn't trip the breaker in the panel or anything either. The digital panel in the middle still works but it doesn't make beep noises anymore. I can press bake, broil, conv bake etc...set a temp and hit start, but nothing kicks on. I'm at a loss here and I am wondering if its going to cost more to replace the parts than to buy a new oven?? Any suggestions to diagnose this problem before I put the thing at the road for garbage?
