Whirlpool Electric Wall Oven RBS305PDB6 Timer Repair

What is the timer/clock part number for the Whirlpool RBS305PDB6 Electric Wall Oven?

Timer part number 4452240 for Whirlpool RBS305PDB6

The RBS305PDB6 Electric Wall Oven uses timer part number 4452240.

Do you have a failed Whirlpool RBS305PDB6 control panel? Click here:

Request Appliance Timer Service

We can repair or replace your faulty Whirlpool RBS305PDB6 timer.

RBS305PDB6 Schematic and Wiring Diagrams

Oven Parts diagram
RBS305PDB6 Electric Wall Oven Oven Parts diagram

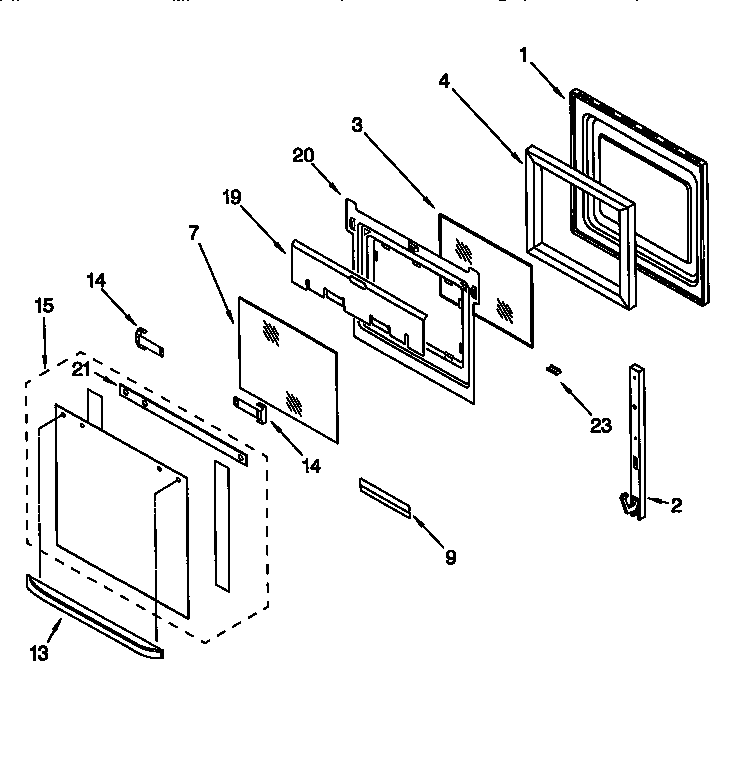

Oven door Parts diagram
RBS305PDB6 Electric Wall Oven Oven door Parts diagram

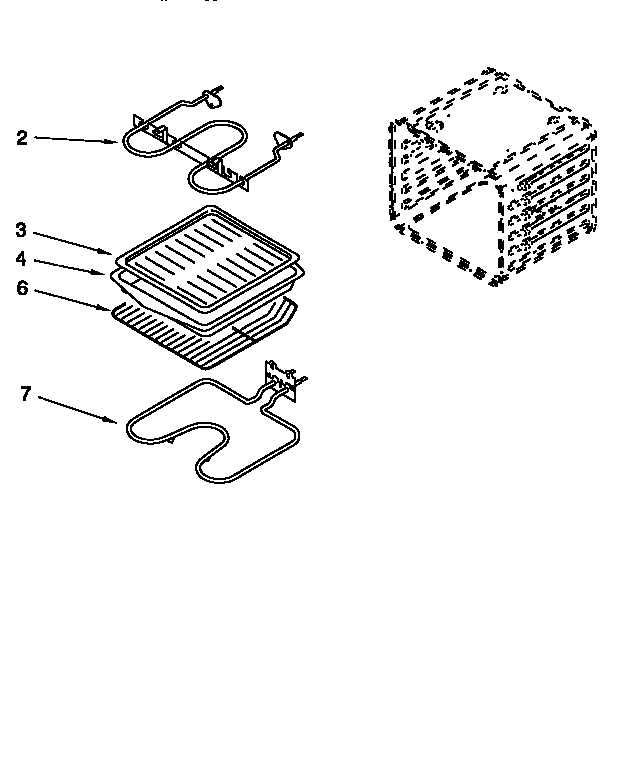

Internal oven Parts diagram
RBS305PDB6 Electric Wall Oven Internal oven Parts diagram

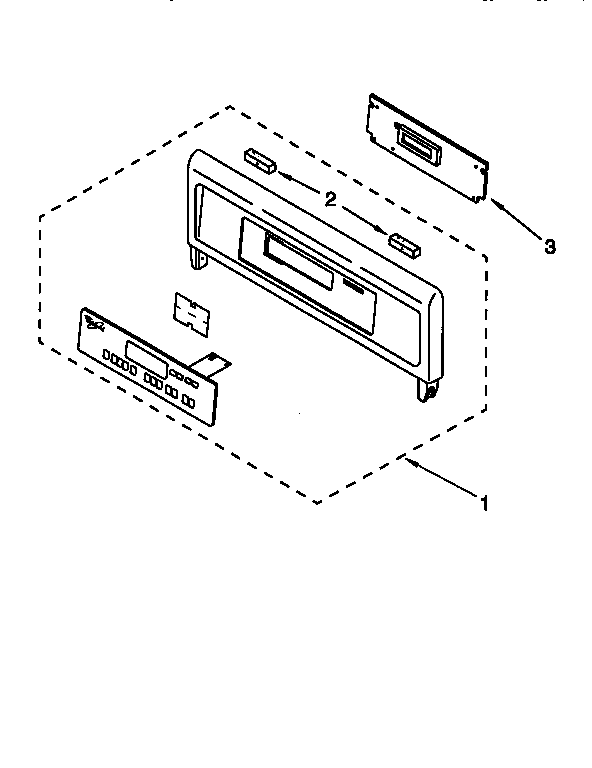

Control panel Parts diagram
RBS305PDB6 Electric Wall Oven Control panel Parts diagram

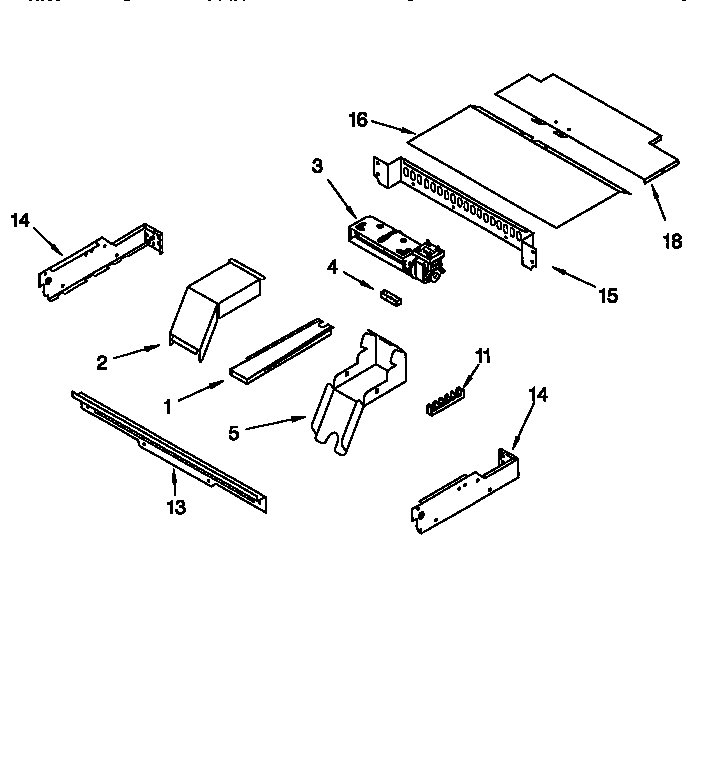

Top venting Parts diagram
RBS305PDB6 Electric Wall Oven Top venting Parts diagram

Recent Service Requests

CityProblem DescriptionResolution
Salem, ArkansasOven comes on at 350 degrees and the up/down arrows lower heat only. Can't set cooking timer.Awaiting receipt of timer
Round Rock, TexasOven turns on to original 350 and won't allow the temp to be raised. When pushing the button for either raising or lowering the temp it only lowers.Awaiting receipt of timer
Keller, TexasThis occurred after running oven on "self-cleaning cycle". When setting oven temp display first shows 350 F. Touching the "TEMP DOWN" button causes the display to decrement. However, touching the "TEMP UP" button ALSO causes the display to decrement. As a result, unable to set oven temp above 350 F.Awaiting receipt of timer
Lubbock, TexasOven stays on at a low heat when the oven is turned off.
.>.
All indications are that the oven is off after pressing the off button.
If the oven door is left open for the oven to cool (and add a little heat to the room during this very cold Winter) and to assist the fan in cooling the oven, the fan will turn off. When the oven door is then closed, shortly thereafter, the fan will turn back on because the baking (lower) element is in fact still on at a low heat level that is definitely hot but not hot enough to glow red.
.>.
Outside keypad panel including with control board at Harold's request.
Timer inspected, no repairs necessary

Common problems for Whirlpool Electric Wall Oven RBS305PDB6 Timer Repair

Are you encountering a similar problem as them? Contact us now and we will try to help you fix your RBS305PDB6 timer-related problem.
NEED TO REPLACE THERMAL SWITCH RBS305PDB6 WHERE IS IT LOCATED?
my oven will only come on in broil mode. Its a Whirlpoor RBS305PDB6
oven won't heat My oven is actually a RBS305PDB6 It was working fine, until I used the self clean mode for the first time. It heated and cooled nicely, but now the oven won't heat the broiler won't work either, and it won't self clean again. The fan is running when I turn it on. I tried resetting the circuit breaker and still no luck.
after a self cleaning which worker fine the oven now does not get hot neither the top element on broil or the bottom get hot it doesn't seem likely that both elements burned out at the same time what else could be the problem . I have reset the circuit breaker just in case that would reset something . mike
After the self cleaning cycle heating elements does not heat. However, the panel works (clock, clock) Husband perform continuity check on elements an the result was positive for continuity. Also tested resistance of thermostat reading was well within oven. Is there any other test that has to be performed to determine where the problem is? Also what part is needed to fix the problem?
hi, My oven is not working. I tried to figure out what is wrong. I took tech sheet paper inside top of oven. My oven on keyboard said, E3 -F1. So, I look up at tech sheet paper to find what excatly problem. I can't figure out what is E3 -F1? So can you help me?
My oven went out (nothing worked). Flipped breaker still nothing. Replaced control board (Part# AP3851248) and oven and light work, but the display does not work. All buttons beep when pressed. Do I have a faulty control board or a wiring problem?
After using the self cleaning, the oven (RBS305PDB6) no longer heats at all. The lights all work, the curcuit breaker is good, and it even looks like it's pre-heating, but it never gets hot. Any ideas?
RBS305PDB6 My oven displays 350 degree default setting when Bake buttom is pushed. The temp setting would go down even when push "up" arrow as does pushing the "down" arrow. Could you help?
Inherited a whirlpool accubake electric single oven that won't heat up. Model #RBS305PDB6. Hit start, then bake, then temp then start and it goes on with the following displays:Countdown from 7:30, heat oven and letters PeR. Oven just won't heat up. Can you help
I have an oven, Model # XXXXX it is diplaying a code EO-F2- In the manuel it says it needs service. What service does it need? How can I fix it.
