What is the timer/clock part number for the Thermador RED30VQW Drop-In Electric Range?

Timer part number 486752 for Thermador RED30VQW

The RED30VQW Drop-In Electric Range uses timer part number 486752.

Do you have a failed Thermador RED30VQW control panel? Click here:

We can repair or replace your faulty Thermador RED30VQW timer.

RED30VQW are also sometimes referred to using these Alternative Names/Model numbers

Bosch RED30VQW Drop-In Electric Range, RED30VQW (9708 & UP), RED30VQW(PRIOR-9708)

RED30VQW Schematic and Wiring Diagrams

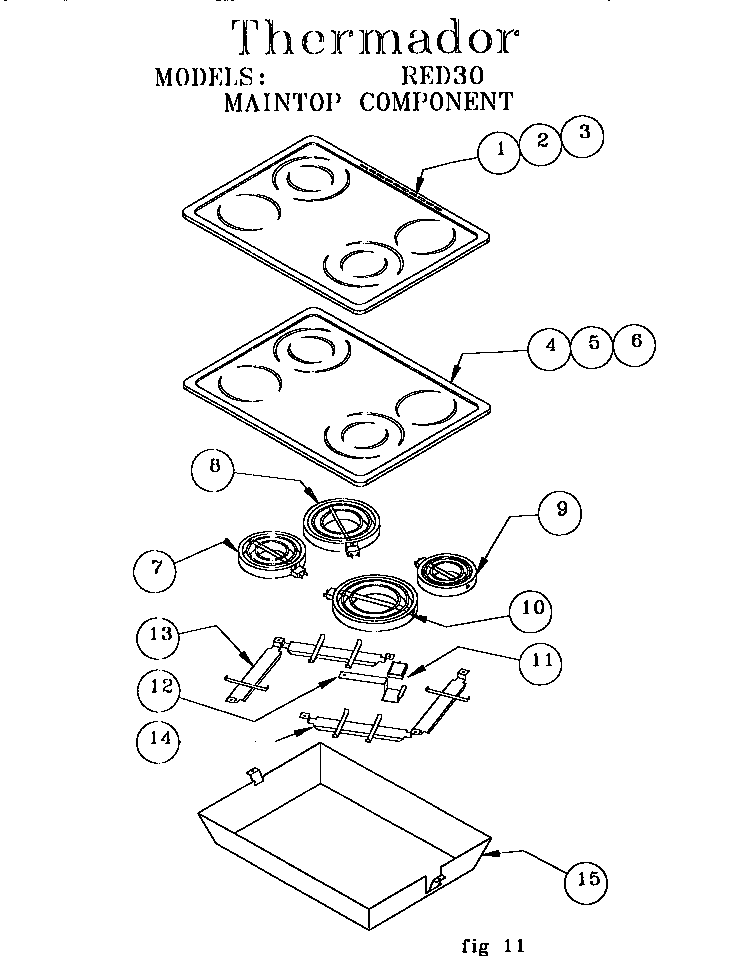

Maintop component Parts diagram

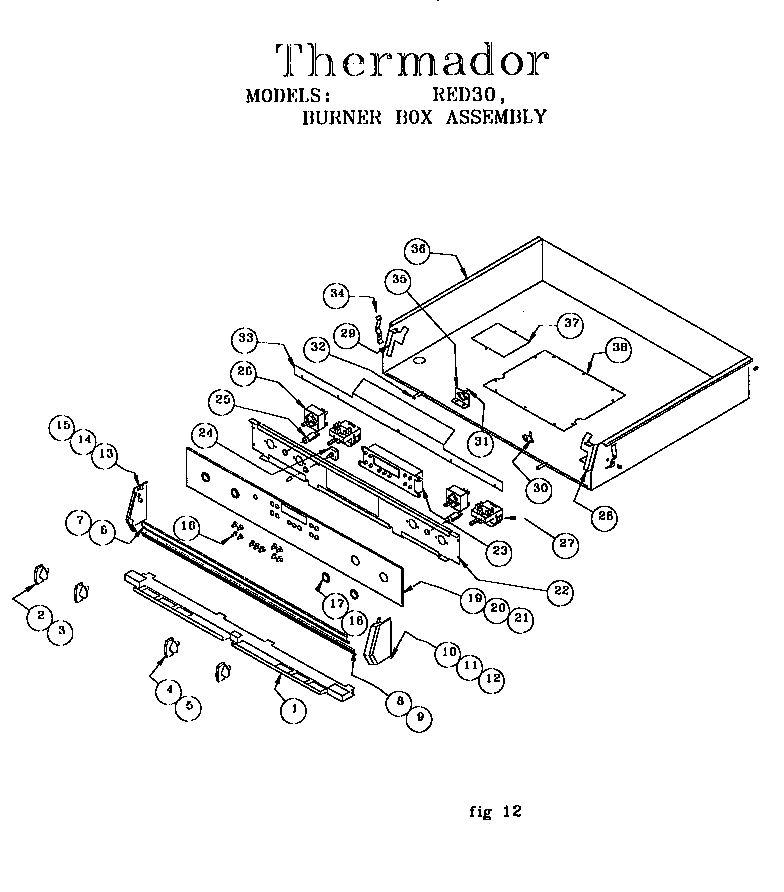

Burner box assembly Parts diagram

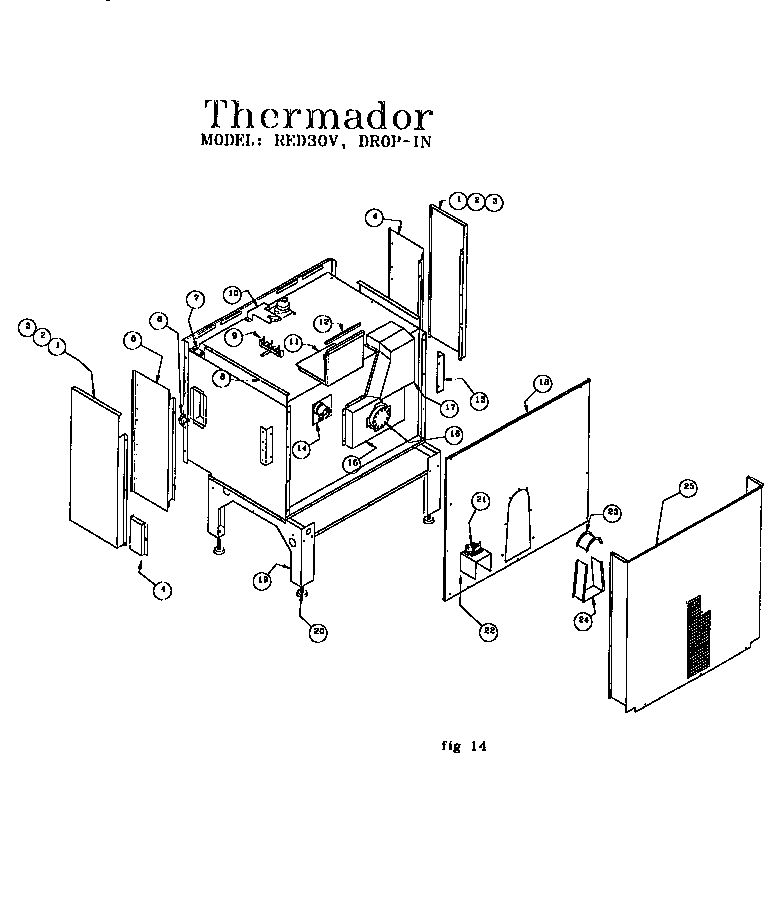

Drop-in Parts diagram

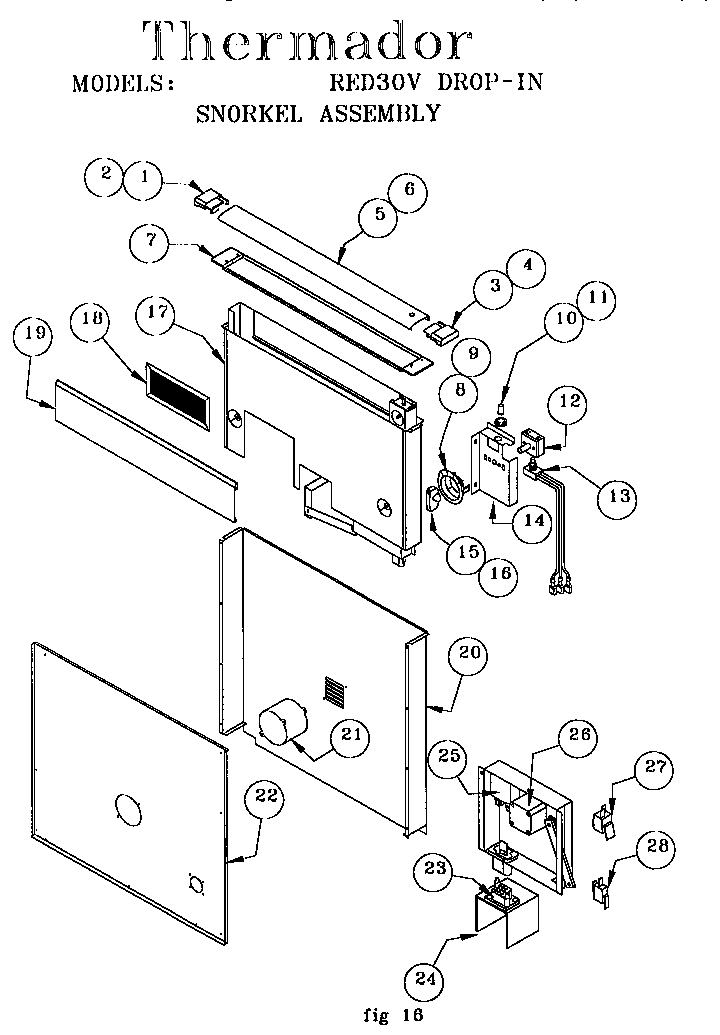

Snorket assembly Parts diagram

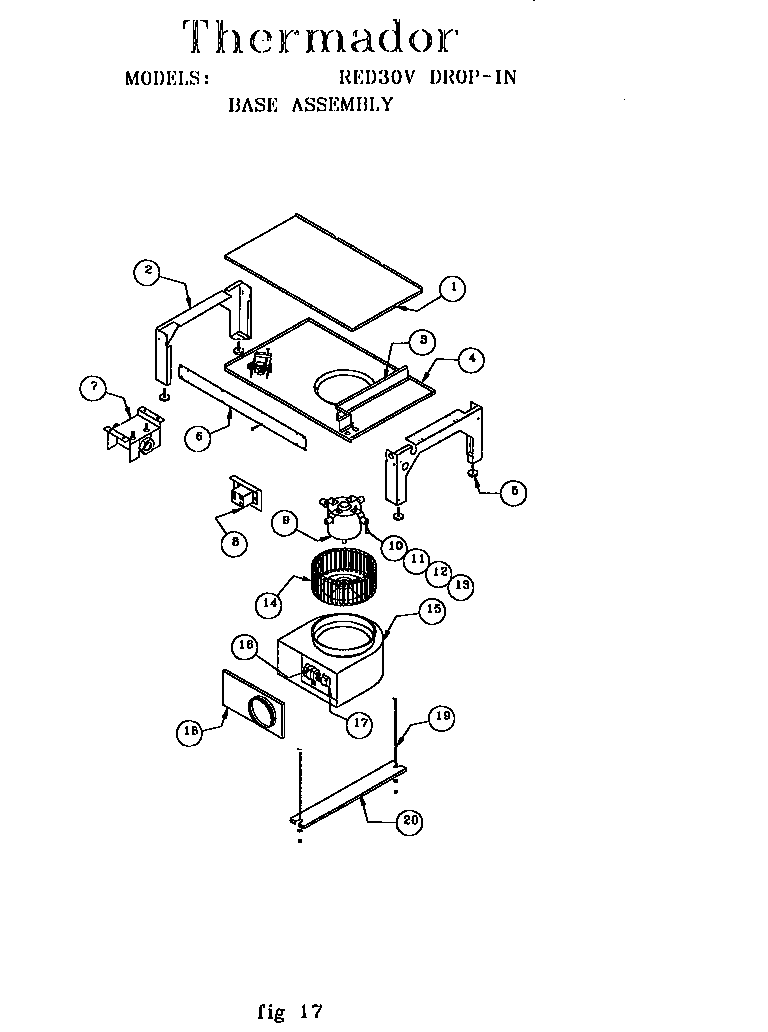

Base assembly Parts diagram

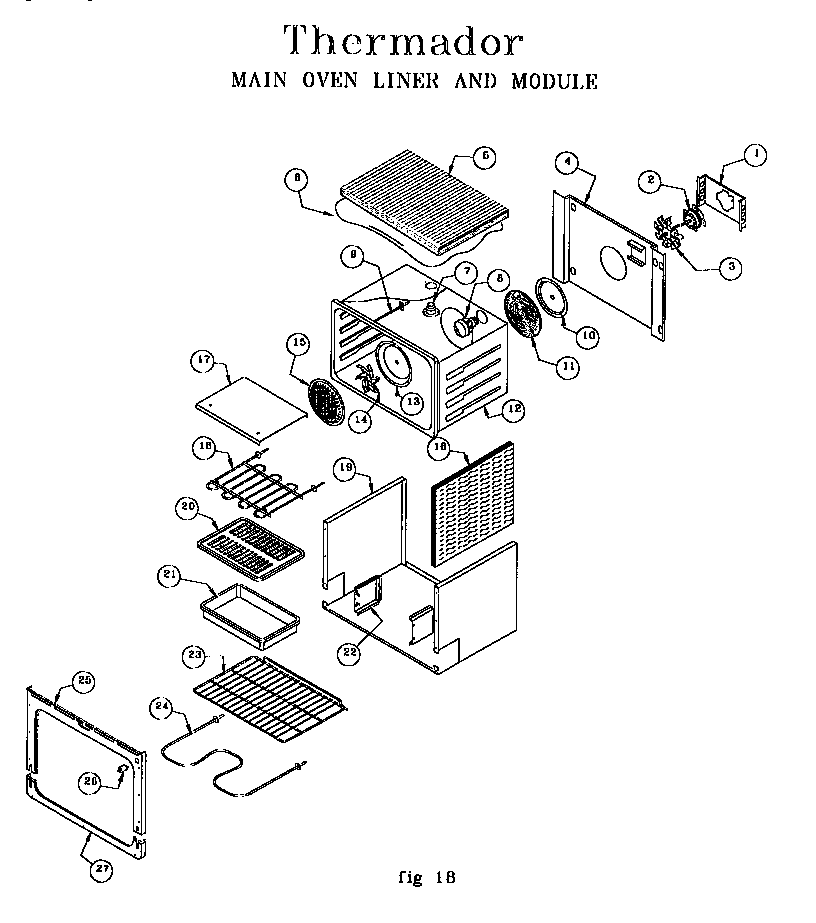

Main oven liner and module Parts diagram

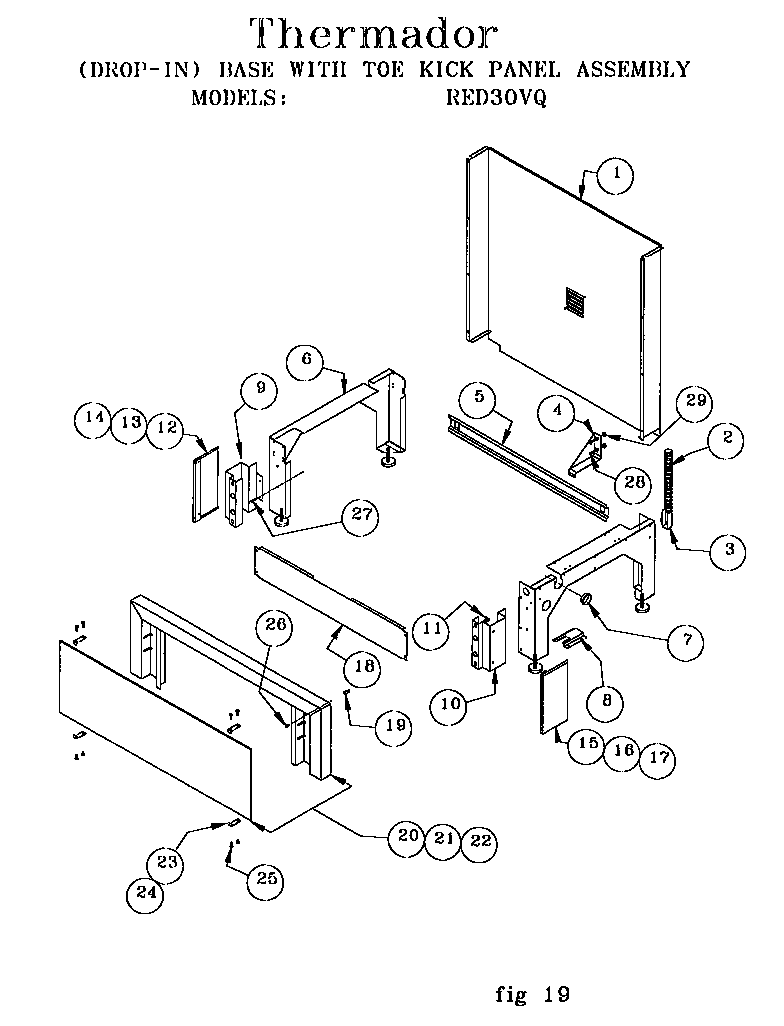

Base with toe kick red30vq Parts diagram

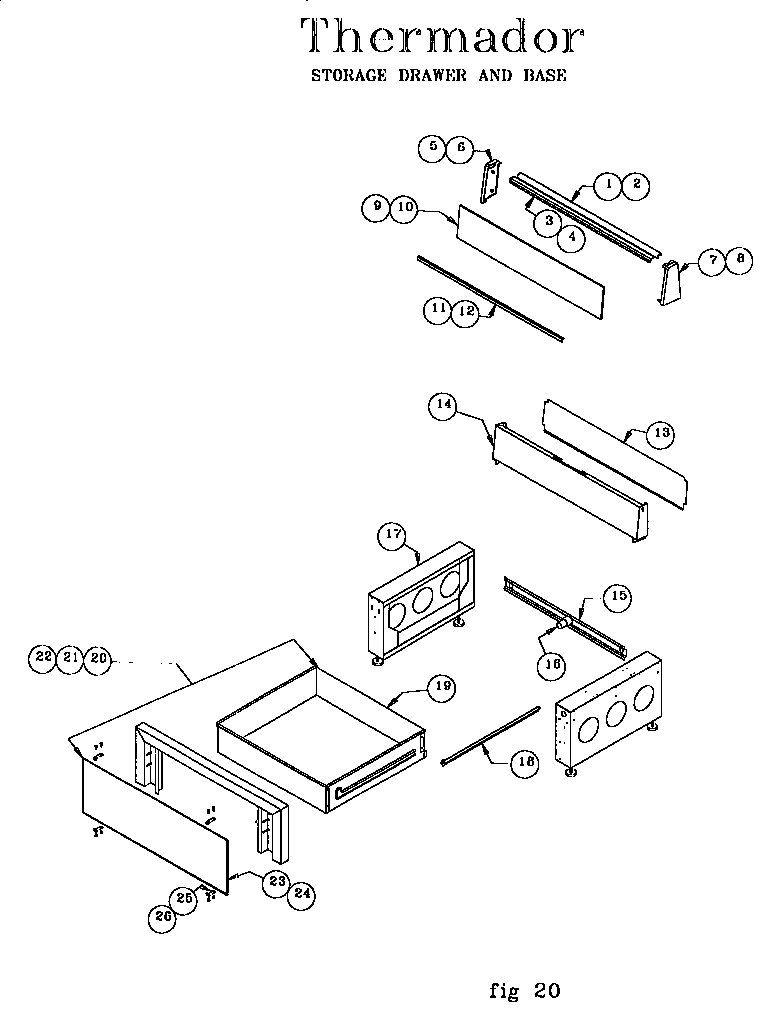

Storage drawer and base Parts diagram

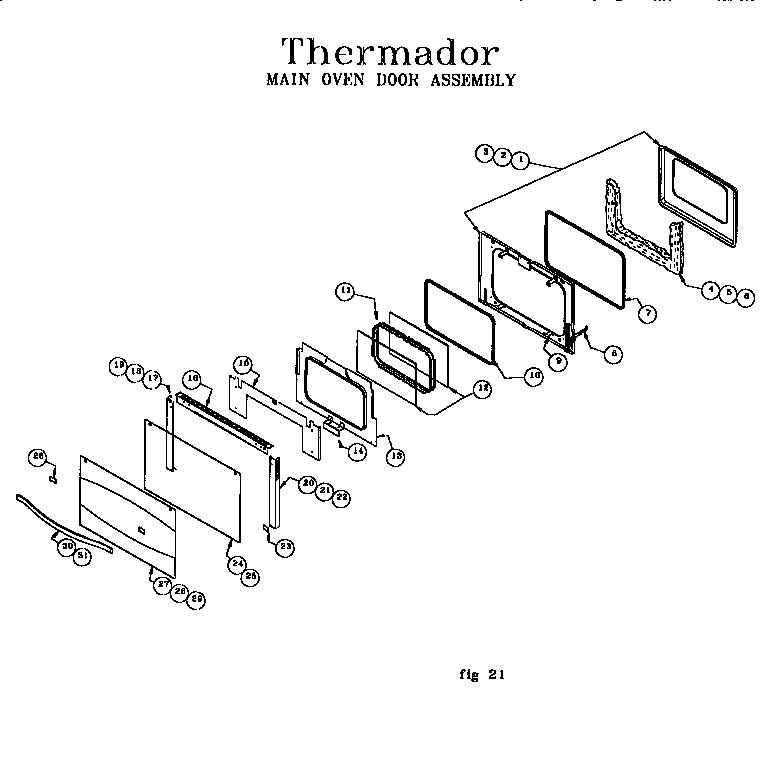

Main oven door assembly Parts diagram

Wiring diagram Parts diagram

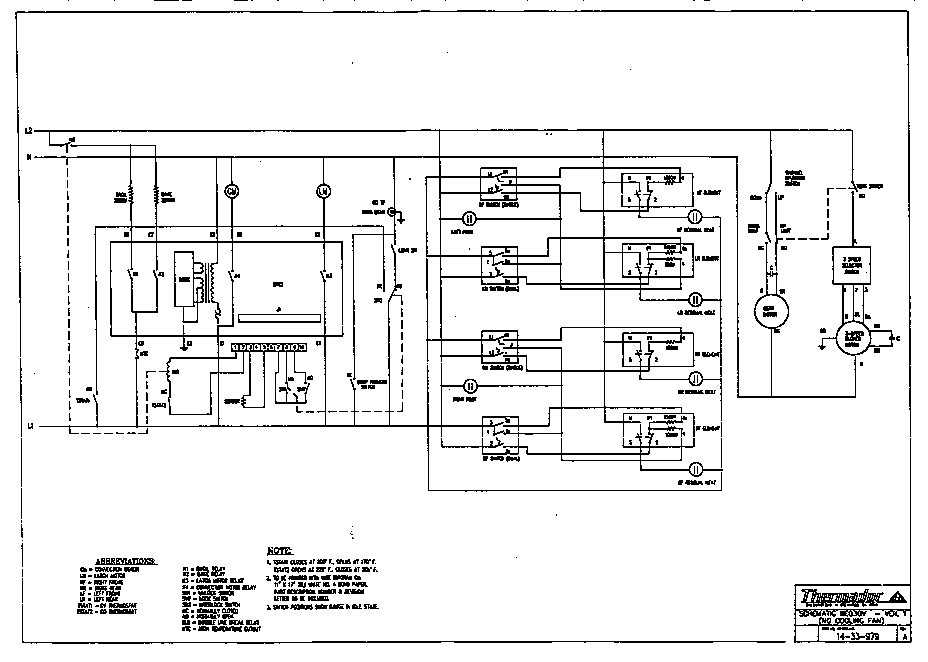

Schematic Parts diagram

Recent Service Requests

City	Problem Description	Resolution
Huntington Beach, California	Control panel LED is getting very dim. Everything else seems to be working fine.	Awaiting receipt of timer
Boucherville,, Québec		Beyond Repair
Boucherville,, Québec		Replaced with reconditioned timer
Boucherville,, Québec	Le timer indique seulement l'heure. Toutes les autres foctions ne fonctionnent pas incluant l'alimentation du four et broil	Beyond Repair
Boucherville,, Québec		Beyond Repair
Chandler, Québec	Number is pale, dont see the number temperature corectly	Replaced with new in-stock timer
Chandler, Québec	Number is pale, dont see the number temperature corectly	Replaced with new in-stock timer
Chandler, Québec	Number is pale, dont see the number temperature corectly	Replaced with new in-stock timer
PORT-DANIEL, Québec	NUMBER IS PALE, DONT SEE THE NUMBER CORRECTLY	Replaced with reconditioned timer
MURRELLS INLET, South Carolina	INTERMITTENT BAKING /BROILING	Timer inspected, no repairs necessary
shawinigan, QuÃ©bec	the oven is not baking at more than 220 F	Repaired
shawinigan, QuÃ©bec	The temperature in the oven don't go up than 220 at bake. The element is good.	Repaired
Redmond, Washington	Oven bake element will not energize. Broil element, convection, clock and timer functions appear to be working correctly.	Awaiting receipt of timer
Redmond, Washington	Oven bake element will not energize. Broil element, convection, clock and timer functions appear to be working correctly.	Awaiting receipt of timer
Post Falls, Idaho	when you turn the circuit breaker to apply power to the stove the beeper for the timer comes on and will not shut off. Cannot use the oven at all.	Awaiting receipt of timer

Common problems for Thermador Drop-In Electric Range RED30VQW Timer Repair
