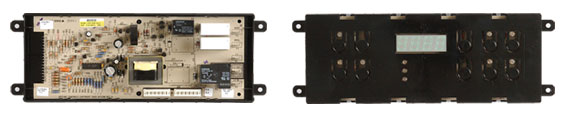

316207511 Electrolux/Frigidaire/Kenmore Range (Stove, Oven) Timer Repair

Part Numbers 316207511, 316207531 and 316557511 are interchangable.

If you are ordering from stock we include a new overlay, also called a touch pad, face plate, decal, etc. You will need to let us know the color of your appliance so we can send the correct (white or black) overlay. Also note that there may be a slight variation in the button arrangement but the replacement timers are all functionally identical.

It is also worth noting that this series of timers has an inherent design flaw that results in a very high rate of failure. We correct this flaw in our in-stock timers before we send them to our customers.

This series of timers is suitable for the following appliance models:

Fridgidaire ERCs

FEF351CSA, FEF351CSB, FEF351CSC, FEF351CUA, FEF351CUB, FEF351CUC, FEF351CWA, FEF351CWB, FEF351CWC, FEF352ASF, FEF352ASG, FEF352ASH, FEF352AUF, FEF352AUG, FEF352AUH, FEF352AWF, FEF352AWG, FEF352AWH, FEF355ABG, FEF355ABH, FEF355ABJ, FEF355ABK, FEF355AQG, FEF355AQH, FEF355AQJ, FEF355AQK, FEF355ASG, FEF355ASH, FEF355ASJ, FEF355ASK, FEF355AWG, FEF355AWH, FEF355AWJ, FEF355AWK, FEF366ASG, FEF366ASH, FEF366ASJ, FEF366ASK, FEF366AWG, FEF366AWH, FEF366AWJ, FEF366AWK, FEF366CBB, FEF366CBC, FEF366CBD, FEF366CBE, FEF366CBF, FEF366CBG, FEF366CCB, FEF366CCC, FEF366CCD, FEF366CCE, FEF366CCF, FEF366CQB, FEF366CQC, FEF366CQD, FEF366CQE, FEF366CQF, FEF366CQG, FEF366CSB, FEF366CSC, FEF366CSD, FEF366CSE, FEF366CSF, FEF366CSG, FEF366XES, FEF366XES, FEFB68CBA, FEFB68CBB, FEFB68CBC, FEFB68CQB, FEFB68CQC, FEFB68CQD, FEFB68CSB, FEFB68CSC, FEFB68CSD, FEFL74ASF, FEFL74ASG, FEFL74ASH

Kenmore ERCs

79092321301, 79092322301, 79092324302, 79092329301, 79092420301, 79092421302, 79092422302, 79092423302, 79092423303, 79092424301, 79092680301, 79092680302, 79092681301, 79092681302, 79092682301, 79092683301, 79092683302, 79092683303, 79092684301, 79092684302, 79092850301, 79092850302, 79092851301, 79092851302, 79092852301, 79092853302, 79092853303, 79092854301, 79092854302, 79092859301, 79092889301, 79092889302, 79093553301, 79093553302, 79093553303, 79093850301, 79093850303, 79093851303, 79093852301, 79093853303, 79093854302, 79093854303, 79093859302, 79093859303, 79094320300, 79094320301, 79094321300, 79094321301, 79094322301, 79094322303, 79094324301, 79094324302, 79094329300, 79094420301, 79094421301, 79094422300, 79094422301, 79094424300, 79094681301, 79094682300, 79094682301, 79094684301, 79094689300, 79094850301, 79094851300, 79094852300, 79094852301, 79094853300, 79094854300, 79094854301, 79095320301, 79095320302, 79095321302, 79095321304, 79095322301, 79095324303, 79095329300, 79095329302, 79095420302, 79095421302, 79095421303, 79095422302, 79095422303, 79095423303, 79095424302, 79095424303, 79095429302, 79095429303, 79095681302, 79095683302, 79095684302, 79095689302, 79095882302, 79095884301, 79095884303, 79095889301, 79095889302, 79095889303

Kelvinator ERCs

KEF355ASG, KEF355ASH, KEF355ASJ

Tappan ERCs

TEF364AQG, TEF364AQJ, TEF364ASG , TEF364ASJ

Failure codes, problems, and resolutions for Electrolux/Frigidaire/Kenmore timer model # 316207511
Electrolux ERCs and Electrolux stove clocks and timersFrigidaire ERCs and Frigidaire stove clocks and timersKenmore ERCs and Kenmore stove clocks and timers Manufacturer :  Electrolux/Frigidaire/Kenmore
Part Number :  316207511
Appliance Type :  Range (Stove, Oven)
Color :
Description :  Clock/timer


Do you have a failed Electrolux/Frigidaire/Kenmore 316207511 timer?
Click here:
We can repair or replace your faulty 316207511 timer.		 Request Appliance Timer Service

Clock/timer timer Part Number 316207511 is used in the following appliances

Recent Service Requests for Electrolux/Frigidaire/Kenmore Part Number 316207511

CityModel NumberFailure CodeProblem DescriptionResolution
Stony Plain, AlbertaFEF352AWFN/Apopping noise. Blew breakerAwaiting receipt of timer
Woodinville, Washington79095322301N/AHoward Quoted $ 106 plus core by return mail Beeps, won't do anything else. Please notify of shipping, and tracking # atReplaced with reconditioned timer
Corpus Christi, Texas790NoneHeard loud pop, found smoke coming range top vent. Removed control panel and inspected to find clock/timer control board burnt internallyAwaiting receipt of timer
Louisville, KentuckyFEFB68CBCN/AOven was preheating, heard a loud Pop then circuit breaker was tripped. When I reset the circuit breaker, the oven and control panel did not work but the cook top does.Awaiting receipt of timer
Three Rivers, California790.95684302NoneTotally stopped workingAwaiting receipt of timer
Minneapolis, MinnesotaN/ABig pop. Blew main breaker. Stove works oven does not. No displayAwaiting receipt of timer
Minneapolis, MinnesotaN/ABig pop blew main breaker stove worksAwaiting receipt of timer
Radford, Virginia790.95680301F1Constant beep and "F1" on power up. Prior to this, the clock worked, but the oven did not heat up.Repaired
Chicago, IllinoisFEF366ASKF1F1 code can't be cleared by resetting or power off cycleAwaiting receipt of timer
Weldon Spring, MissouriFEFL74ASFN/AWent blankAwaiting receipt of timer
Tullahoma, TennesseeFEF366CCE01Spark Pop BlackoutAwaiting receipt of timer
Anamosa, IowaN/ANo displayAwaiting receipt of timer
Northumberland, Pennsylvania316233860F1Beeping and flashing f1. Only way to stop it is by unplugging. Stove works fine.Awaiting receipt of timer
Ocala, Florida790.95423301NoneThe oven doesn’t work or the time , there is nothing showing on the display. But the stove top work just fine .Awaiting receipt of timer
Edmonton, AlbertaCFEF369ACHN/AWhile oven was on and baking, loud pop was heard, which tripped the breaker. Breaker flipped back and stove top worked again, no error code displayed on screen. Oven will appear to be able to turn on, but will not heat, either on bake or broil. Stovetop continues to function normally.Repaired
Ocala, Florida790.95423301NoneThe over will not heat and there is no lights in the timer , wife heard a pop, and the breaker trip. Wife didn’t notice There over wasn’t working until she when to use it. The burner all work on top .Awaiting receipt of timer
ROTONDA WEST, Florida79092322301F1F1 error codeAwaiting receipt of timer
levis, QuebecfrigidaireFE somethingthis unit has been repaired allready. a resistance has blown, the display is bugged and the oven heats erraticly I prefer a new unit I have changed my shipping addressAwaiting receipt of timer
levis, QuebecfrigidaireFE somethingthis unit has been repaired allready. a resistance has blown, the display is bugged and the oven heats erraticlyAwaiting receipt of timer
Lexington, KentuckyFEF366CCENANot clock, no oven, stove top appears to workAwaiting receipt of timer
